Send Inquiry480 CFM Centrifugal Blower
Price 4800 INR/ Unit
MOQ : 1 Unit
480 CFM Centrifugal Blower Specification
- Motor Power
- 180 Watt (W)
- Flow Rate
- 480 CFM
- Power
- 180 Watt (w)
- Output Power
- 180 Watt (w)
- Product Type
- FHP Motor,PMDC Motor,Torque Motor,Reversible Motor,Brake Motor,Centrifugal Blower
- Material
- other
- Pressure
- High Pressure
- Application
- Industrial, Thermoforming, textile, prinitng, Filling, Food-processing
- Frequency (MHz)
- 50-60 Hertz (HZ)
- Motor Speed
- 2700 RPM
- Power Source
- Electric Blower
- Voltage
- 220-440 Volt (v)
- Weight
- 5 Kilograms (kg)
- Color
- Black
- Warranty
- 1 Year
480 CFM Centrifugal Blower Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Pune
- Supply Ability
- 500 Units Per Month
- Delivery Time
- 30 Days
- Sample Available
- Yes
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Main Export Market(s)
- Asia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
About 480 CFM Centrifugal Blower
Blower Specifications:
Model
Supply Voltage
Frequency
Hz
Current
A
Speed
RPM
Max Air Flow
CFM
Capacitor
F
Pa
mm of H2O
CB1665X
Single Phase 230V
50
1.1
2600
420
570
48
8.0
CB1665Y
Three Phase 415V
50
0.5
2700
420
570
48
-
| Model | Supply Voltage | Frequency Hz |
Current A |
Speed RPM |
Max Air Flow CFM |
Capacitor F |
||
|---|---|---|---|---|---|---|---|---|
| Pa | mm of H2O | |||||||
| CB1665X | Single Phase 230V | 50 | 1.1 | 2600 | 420 | 570 | 48 | 8.0 |
| CB1665Y | Three Phase 415V | 50 | 0.5 | 2700 | 420 | 570 | 48 | - |
Centrifugal Blowers move air by means of the centrifugal force generated by rotating cylindrical impeller.
Used for applications where increased air pressure, increased static pressure, high airflow is required.
Centrifugal blowers have a small outlet, which concentrates air in a single direction, and are therefore suitable for local cooling.
Air Flow Vs Static Pressure:
Blower Dimensions:
Max. Weight: 6.4 kg
Wiring Diagram:
Wiring Diagram for Single Phase Blower
Ensure that the impeller is rotating in counter clockwise direction. Airflow is maximum.
Short Black wires and connect as shown to rotate the motor in counter clockwise direction.
To change the direction, connect the supply wire from White to Red.
Wiring Diagram for Three Phase Blowerr
To Change the direction, interchange any two wires between U, V &W. For 415 V 3 Phase supply, wires are connected as shown. Short White, Black & Blue wires & then insulate it properly.
To change the direction, interchange any two wires between U, V & W.
For 230 V 3 Phase supply, wires are connected as shown.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Centrifugal Blower Category

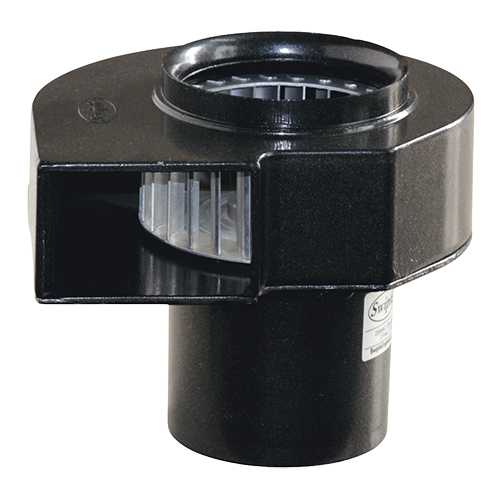

100 CFM Centrifugal Blower
Price 2460.0 INR / Unit
Minimum Order Quantity : 1 Unit
Pressure : 1 Pa
Color : Black
Output Power : 25 Watt (w)
Frequency (MHz) : 5060 Hertz (HZ)

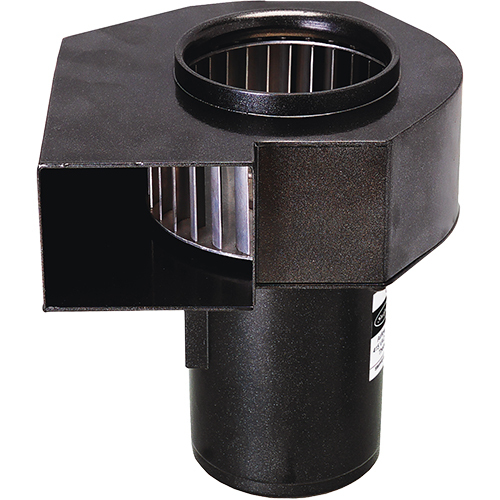

240 CFM Centrifugal Blower
