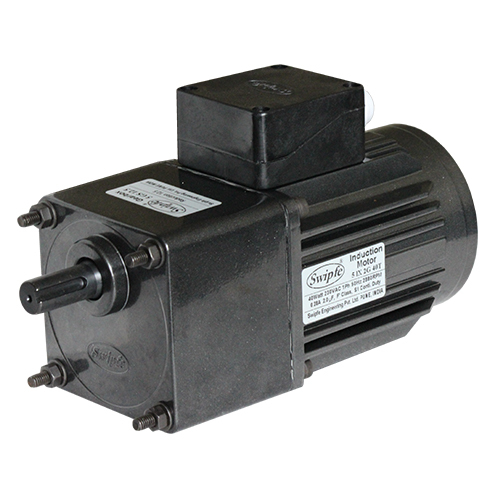

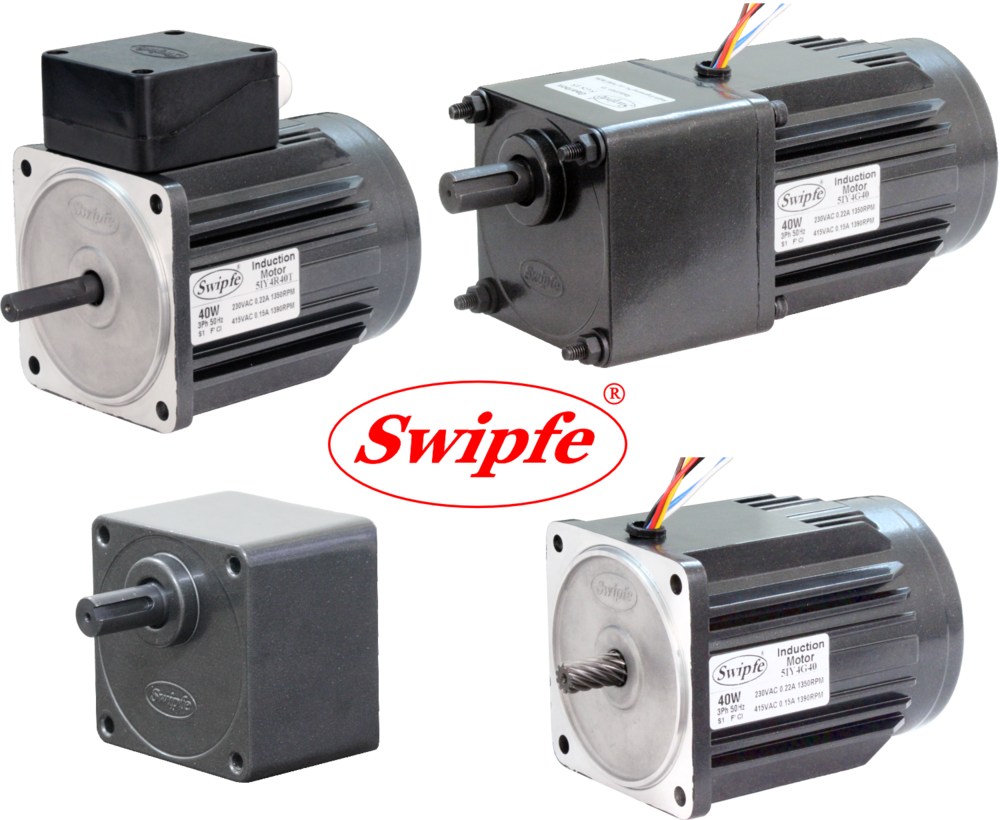

AC Geared Motor 40 Watt

Name: AC Geared Motor 40 Watt
Brand: Swipfe Engineering Pvt. Ltd.
Price: 2790.0 INR
Availability: InStock

Price 2790.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

AC Geared Motor 40 Watt Specification

Rated Voltage
415 Volt (V)

Features
Continuous Duty Clockwise or Counter Clockwise Rotation Terminal Box or Lead Wires For Connection Totally Enclosed Aluminium Body

Cooling Method
Surface Cooled

Torque
20 N-m

Horse Power
0.05

Ambient Temperature
-30 To 40 Celsius (oC)

Poles Number
4, 8, 2, 6

Power Rating
Continuous

Bearing Type
Ball Bearing

Voltage
230 Volt (v)

Rated Frequency
50 Hertz (HZ)

Starting Type
Electric start

Product Type
FHP Motor

Output Power
40 Watt (w)

Frequency (MHz)
50 Hertz (HZ)

Protect Feature
Totally Enclosed

Efficacy
Other

Speed
1500 RPM

Power
40 Watt (w)

Usage & Applications
Industrial

Color
Black

Dimension (L*W*H)
238*90*125 Millimeter (mm)

Weight
2.5 Kilograms (kg)

Phase
Single / Three phase

Warranty
1 Year

Frequency
50 Hertz (HZ)

Rated Current
0.2 Ampere (amp)

Material
Aluminium

Conductor
Copper

Shaft Diameter
15 Millimeter (mm)

Mounting Type
Flange

IP Rating
ip55

AC Geared Motor 40 Watt Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Pune

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Units Per Month

Delivery Time
30 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Asia, Central America, North America, South America, Eastern Europe, Middle East, Africa

Main Domestic Market
All India

About AC Geared Motor 40 Watt

40 Watt

Square Flange

90mm x 90mm

Continuous Duty
Clockwise or Counter Clockwise Rotation
Terminal Box or Lead Wires For Connection
Totally Enclosed Aluminium Body

40watt-induction-motor

Motor Specifications:

Model	Supply	Frequency Hz	Stall Torque Nm	Rated Torque Nm	Rated Speed RPM	Rated Current Amp	Capacitor F
5IX440	Single Phase 230V	50	0.34	0.28	1350	0.27	2
5IY440	Three Phase 230V	50	0.56	0.28	1350	0.25	-
5IY440	Three Phase 415V	50	0.69	0.28	1400	17	-
5IX240	Single Phase 230V	50	0.20	0.14	2800	0.26	1
5IY240	Three Phase 230V	50	0.22	0.14	2800	0.23	-
5IY240	Three Phase 415V	50	0.33	0.14	2850	0.16	-

Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom

Gear Motor Torque Table:

The maximum permissible torque is 20 Nm
No Load speed of Motor at 50Hz is approx. 1440RPM

50Hz

Unit : N.m

RPM	480	400	288	240	192	160	115	96	80	57	48	40	29	24	19	16	14	12	9.6	8
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	0.72	0.87	1.2	1.4	1.8	2.2	2.7	3.2	3.9	4.9	5.8	7.0	8.8	10.6	13.3	15.9	17.7	20.0	20.0	20.0

The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.

Motor Dimensions:

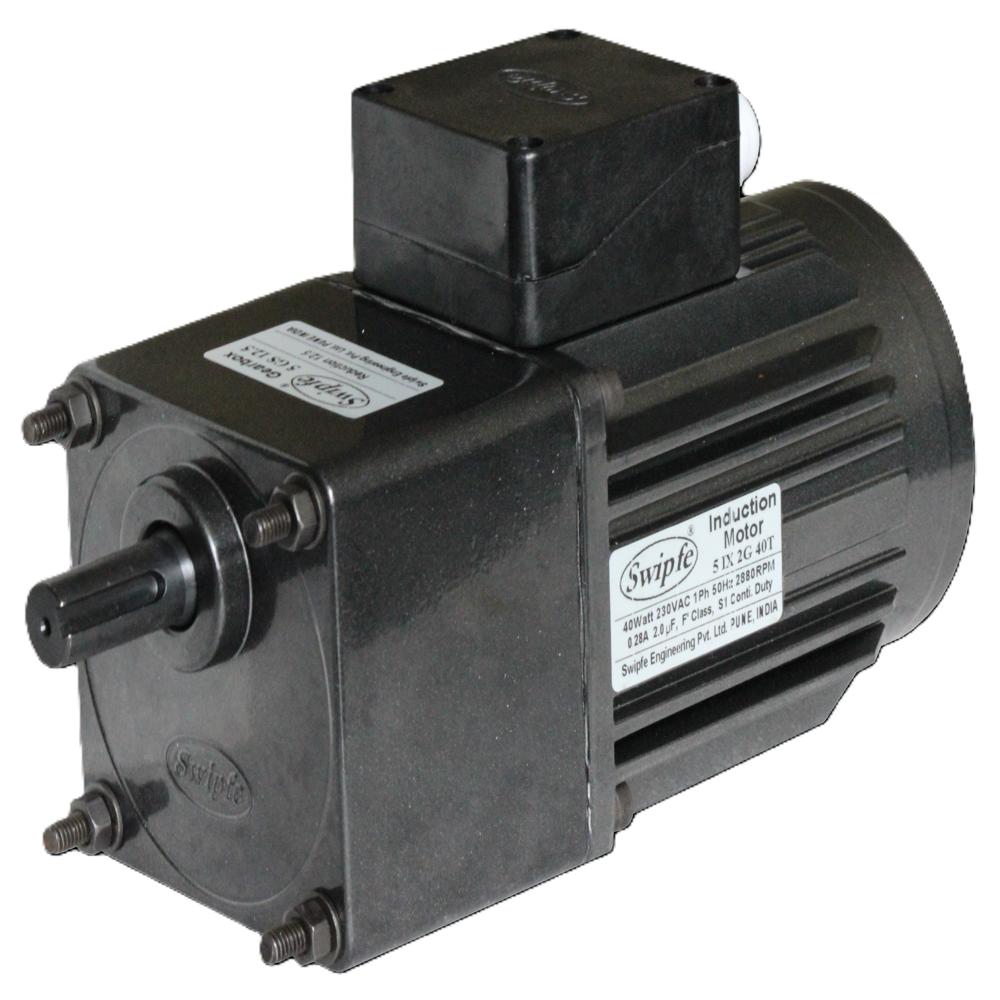

Motor, Gearbox with Terminal Box

40watt-inductio-motor-Motor-Gearbox-With-Terminal-Box

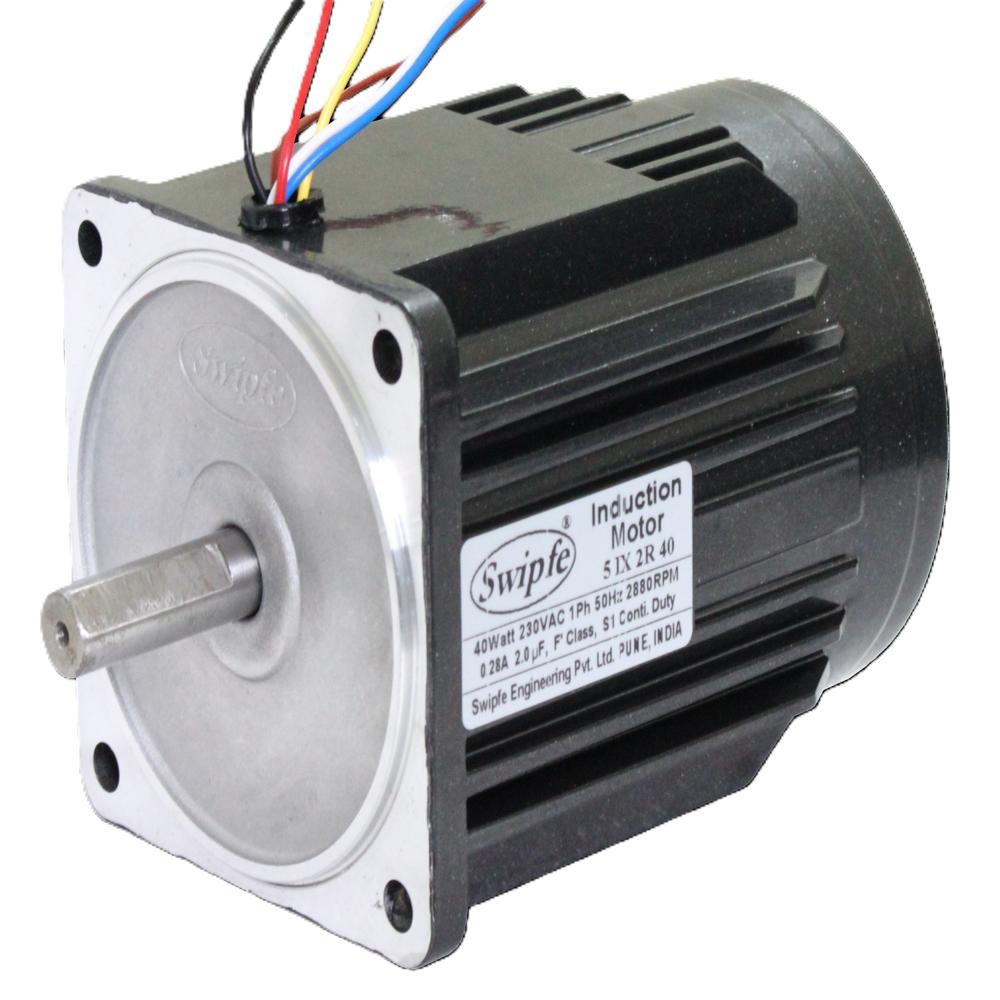

Motor Round Shaft with Terminal Box

40watt-induction-motor-round-shaft-with-terminal-box

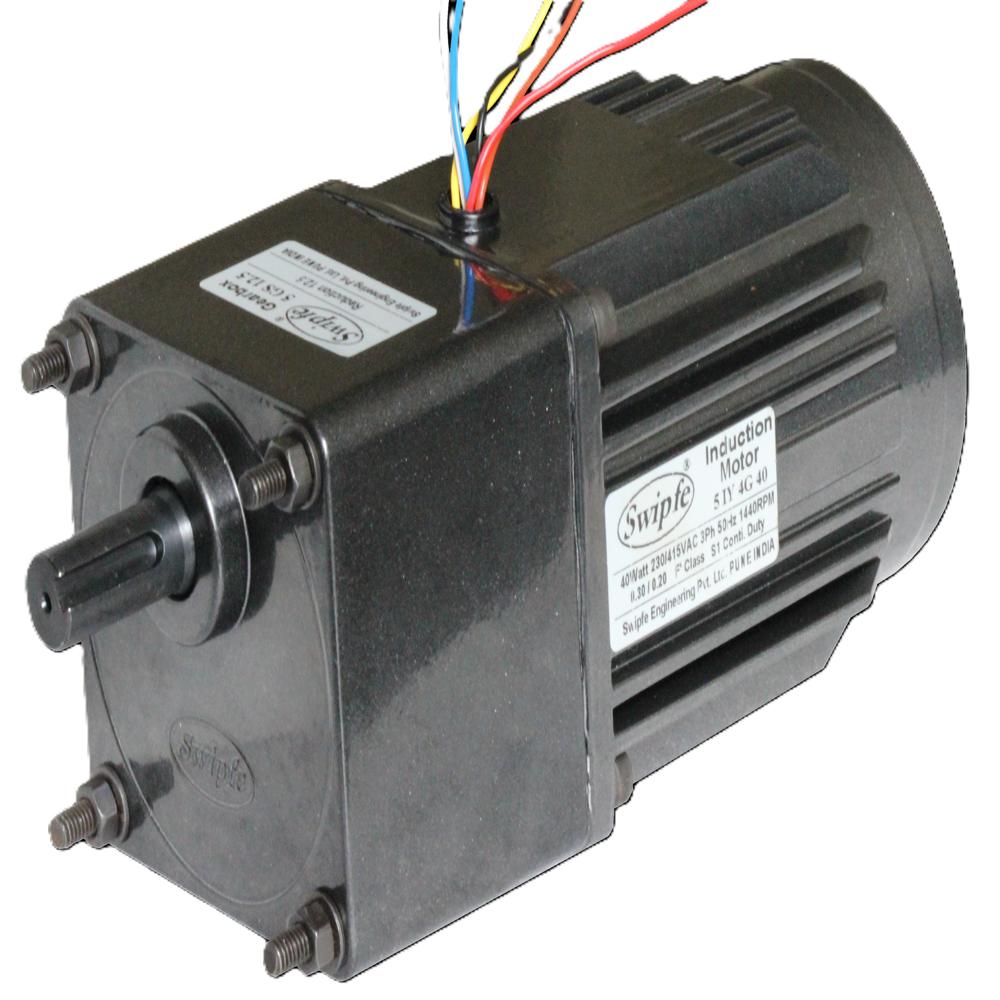

Motor, Gearbox with Lead Wires

40watt-induction-motor-gearbox-with-lead-wires-side-view

Key & Keyway

40watt-inductio-motor-Motor-Gearbox

Max. Weight:

Motor - 2.2 kg

Gear Box - 1.5 kg

Wiring Diagram:

Wiring Diagram for Single Phase Motor

40watt-induction-motor-Wiring-Diagram-For-Single-Phase-Motor

Short Black wires and connect as shown to rotate the motor in clockwise direction.
To change the direction, flip CW to CCW.

40watt-induction-motor-Wiring-Diagram-For-Single-Phase-Motor

Red wires are for running winding & Black wires are for starting winding. To change the direction, interchange Black wires or Red wires.

Wiring Diagram for Three Phase Motor

Star Connection

To change the direction, interchange any two wires between U, V & W. For 415 Volt 3 Phase supply, wires are connected as shown. Short White, Black, & Blue wires and then insulate it properly.

Delta Connection

To change the direction, interchange any two wires between U, V & W.
For 230 Volt 3 Phase supply, wires are connected as shown.

Change the direction of motor only after it stops rotating. If the attempt is made during rotation, motor may not change the direction or change the direction after some time.
