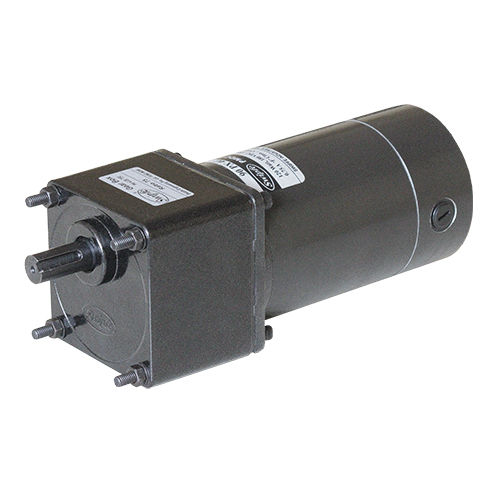

PMDC Motor 180 Watt
3300.00 - 6300.00 INR/Unit
Product Details:
- Features Stable performance
- Conductor Copper
- Voltage 220-240 Volt (v)
- Phase Single / Three phase
- Usage & Applications Industrial
- Output Power 180 Watt (w)
- Frequency (MHz) 50-60 Hertz (HZ)
- Click to View more
X
PMDC Motor 180 Watt Price And Quantity
- 3300.00 - 6300.00 INR/Unit
- 1 Unit
PMDC Motor 180 Watt Product Specifications
- Stable performance
- 220-240 Volt (v)
- Copper
- 50-60 Hertz (HZ)
- 180 Watt (w)
- Electric Start
- Single / Three phase
- Industrial
- Totally Enclosed
PMDC Motor 180 Watt Trade Information
- Pune
- 500 Unit Per Month
- 30 Days
- Yes
- Sample costs shipping and taxes has to be paid by the buyer
- Asia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
Product Description
180 Watt
Square Flange
90mm x 90mm
Replaceable Carbon Brush Permanent Magnet Motor.
Rotates in Clockwise or Counter Clockwise Direction.
Continuous Rating, Lead Wires for Connection.
Motor Specifications:
| Model | Supply | Current A |
Rated Torque Nm |
Rated Speed RPM |
|---|---|---|---|---|
| 5PW4180 | 90V | 2.2 | 1.26 | 1350 |
| 5PY4180 | 180V | 1.1 | 1.26 | 1350 |
Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom
Gear Motor Torque Table:
The maximum permissible torque is 20 Nm
50Hz
Unit : N.m
| RPM | 500 | 416 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
| Output Torque | 3.1 | 3.7 | 5.1 | 6.1 | 7.6 | 9.2 | 11.5 | 13.8 | 16.5 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.
Motor Dimensions:
Motor, Gearbox with Terminal Box
Motor Round Shaft with Terminal Box
Motor, Gearbox with Lead Wires
Key & Keyway
Max. Weight:
Motor - 3.1 kg
Gear Box - 1.75 kg
