25 W Round Shaft FHP Motor

Price 2250.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

25 W Round Shaft FHP Motor Specification

Rated Voltage
230 Volt (V)

Features
Continuous Duty, Clockwise or Counter Clockwise Rotation Terminal Box or Lead Wires For Connection Totally Enclosed Aluminium Body

Voltage
220-440 Volt (v)

Rated Frequency
50 Hertz (HZ)

Torque
8 N-m

Power Rating
Continuous

Starting Type
Electric

Poles Number
4, 2

Current Type
AC

Horse Power
0.02

Cooling Method
Self Cooled

Ambient Temperature
-30 to 40 Celsius (oC)

Bearing Type
Ball Bearing

Product Type
FHP Motor

Output Power
25 Watt (w)

Frequency (MHz)
50 Hertz (HZ)

Protect Feature
Totally Enclosed

Speed
1500 RPM

Power
25 Watt (w)

Usage & Applications
Industrial

Color
Black

Operating Temperature
40 Celsius (oC)

Dimension (L*W*H)
90*80*115 Millimeter (mm)

Weight
1.2 Kilograms (kg)

Warranty
1 Year

Phase
Single / Three phase

Conductor
Copper

Rated Current
0.2 Ampere (amp)

Material
Aluminium

Frequency
50 Hertz (HZ)

Shaft Diameter
10 Millimeter (mm)

Mounting Type
Flange

IP Rating
ip44

25 W Round Shaft FHP Motor Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Pune

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
2 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Asia, Central America, North America, Eastern Europe, Africa, Middle East

Main Domestic Market
All India

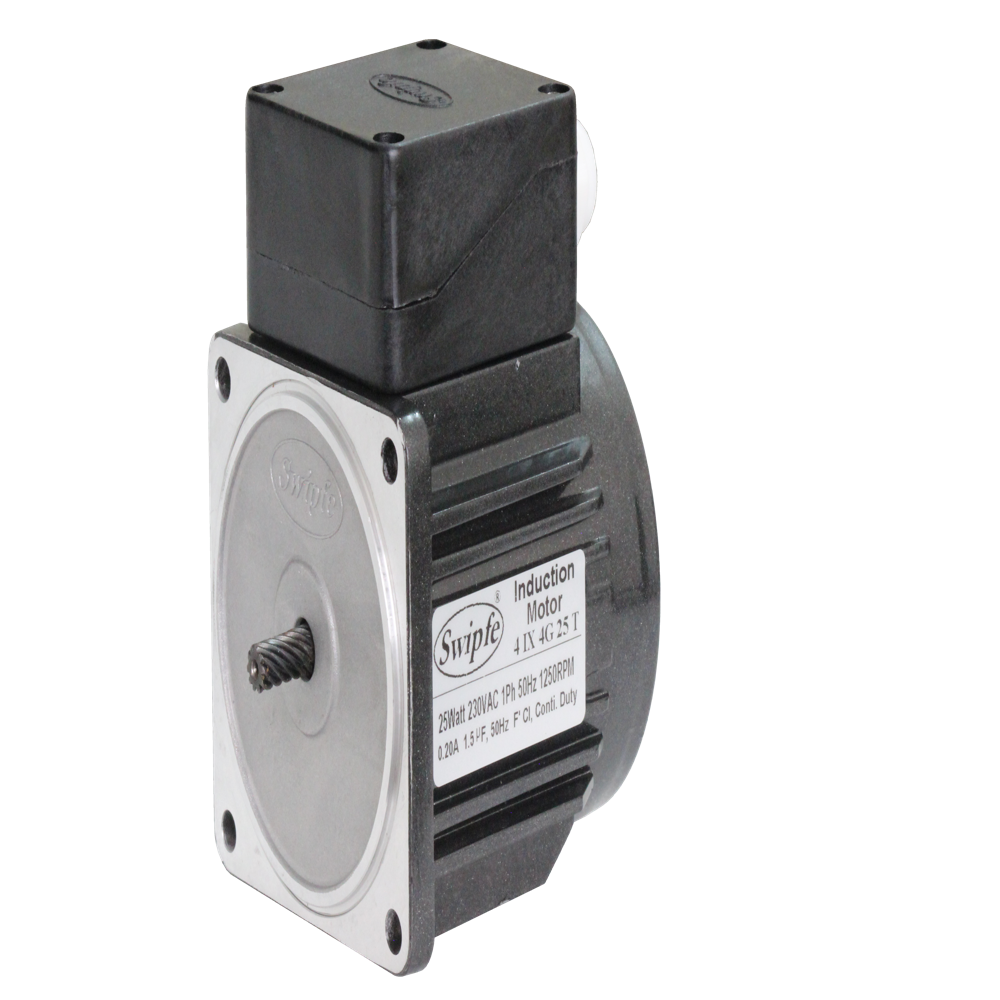

About 25 W Round Shaft FHP Motor

25 Watt

Square Flange
80mm x 80mm

Continuous Duty,
Clockwise or Counter Clockwise Rotation
Terminal Box or Lead Wires For Connection
Totally Enclosed Aluminium Body

Motor Specifications:

Model	Supply	Frequency Hz	Stall Torque Nm	Rated Torque Nm	Rated Speed RPM	Rated Current Amp	Capacitor F
4IX425	Single Phase 230 Volt	50	0.27	0.19	1250	0.20	1.5
4IY425	Three Phase 230 Volt	50	0.39	0.19	1250	0.18	-
4IY425	Three Phase 415 Volt	50	0.51	0.19	1300	0.13	-

Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom

Gear Motor Torque Table:

The maximum permissible torque is 8 N.m
No Load speed of Motor at 50Hz is approx. 1440RPM

50 Hz

Unit : N.m

RPM	480	400	288	240	192	160	115	96	80	57	48	40	29	24	19	16	14	12	9.6	8
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	0.4	0.5	0.7	0.9	1.1	1.3	1.9	2.3	2.7	3.4	4.1	5.0	6.1	7.4	8.0	8.0	8.0	8.0	8.0	8.0

The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.

Motor Dimensions:

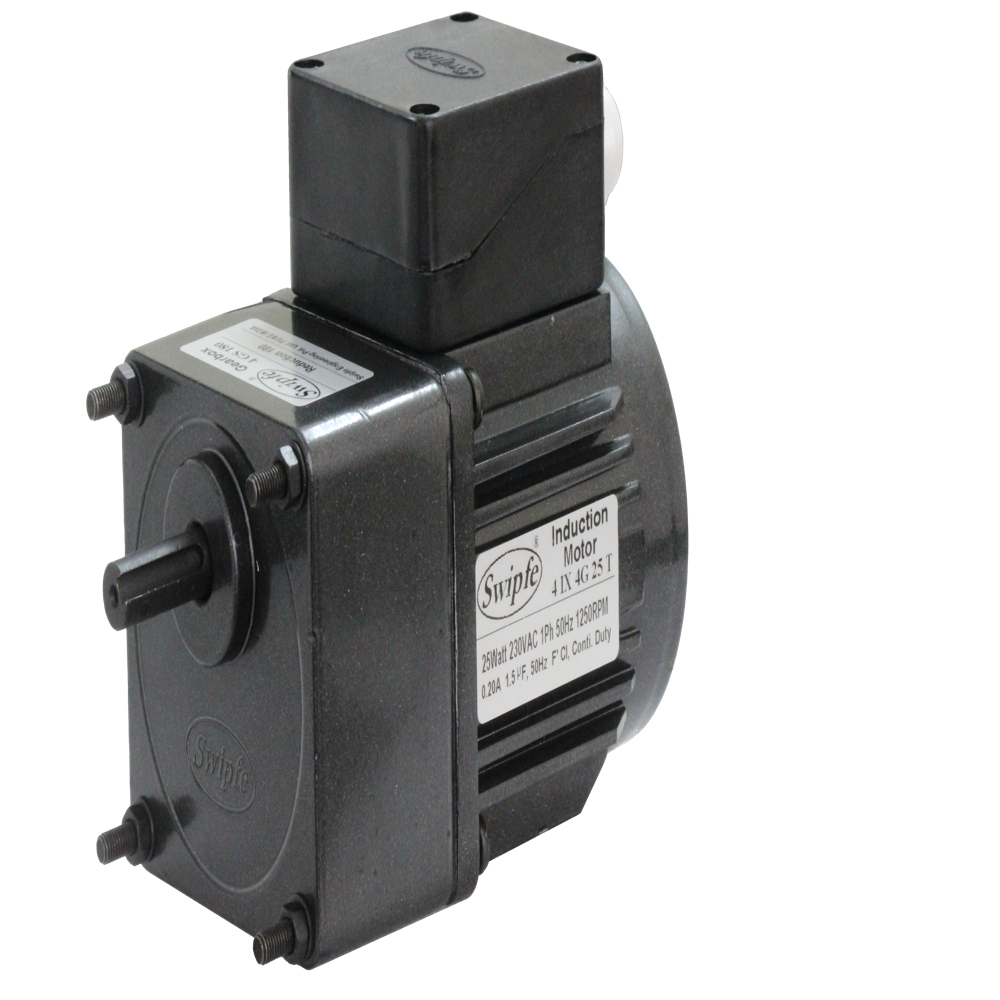

Motor, Gearbox with Terminal Box

Motor Round Shaft with Terminal Box

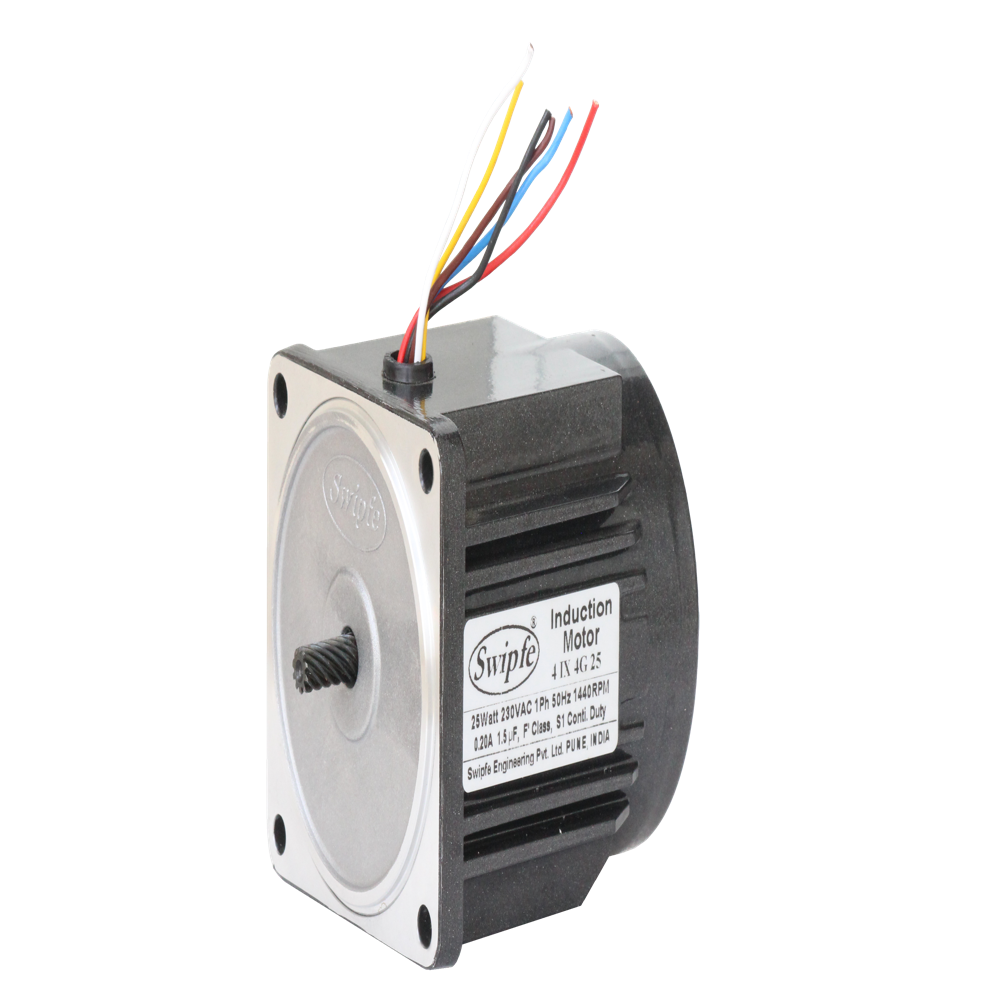

Motor, Gearbox with Lead Wires

Key & Keyway

Max. Weight:

Motor - 1.4 kg

Gear Box - 0.75 kg

Wiring Diagram:

Wiring Diagram for Single Phase Motor

Short Black wires and connect as shown to rotate the motor in clockwise direction.
To change the direction, flip CW to CCW.

Red wires are for running winding & Black wires are for starting winding. To change the direction, interchange Black wires or Red wires.

Wiring Diagram for Three Phase Motor

Star Connection

To change the direction, interchange any two wires between U, V & W. For 415 Volt 3 Phase supply, wires are connected as shown. Short White, Black, & Blue wires and then insulate it properly.

Delta Connection

To change the direction, interchange any two wires between U, V & W.
For 230 Volt 3 Phase supply, wires are connected as shown.

Change the direction of motor only after it stops rotating. If the attempt is made during rotation, motor may not change the direction or change the direction after some time.
