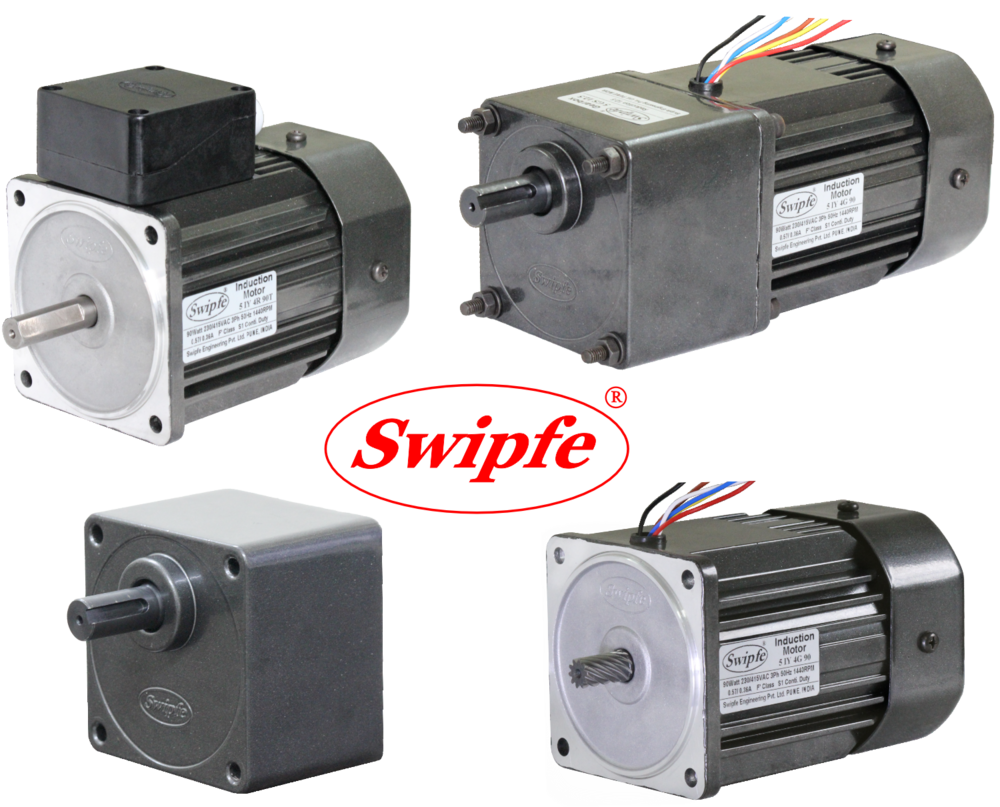

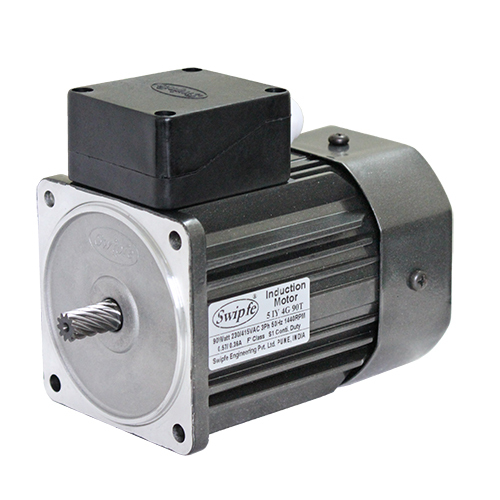

90 Watt Induction Gear Motor

Product Description

Continuous Duty
Clockwise or Counter Clockwise Rotation
Terminal Box or Lead Wires For Connection
Totally Enclosed Fan Cooled Aluminium Body

Motor Specifications:

Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom

Gear Motor Torque Table:

The maximum permissible torque is 20 Nm
No Load speed of Motor at 50Hz is approx. 1440RPM

50Hz

Unit : N.m

The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.

Motor Dimensions:

Motor, Gearbox with Terminal Box

Motor Round Shaft with Terminal Box

Motor, Gearbox with Lead Wires

Key & Keyway

Max. Weight:

Motor - 2.7 kg

Gear Box - 1.7 kg

Wiring Diagram:

Wiring Diagram for Single Phase Motor

Short Black wires and connect as shown to rotate the motor in clockwise direction.
To change the direction, flip CW to CCW.

Red wires are for running winding & Black wires are for starting winding. To change the direction, interchange Black wires or Red wires.

Wiring Diagram for Three Phase Motor

Star Connection

To change the direction, interchange any two wires between U, V & W. For 415 Volt 3 Phase supply, wires are connected as shown. Short White, Black, & Blue wires and then insulate it properly.

Delta Connection

To change the direction, interchange any two wires between U, V & W.
For 230 Volt 3 Phase supply, wires are connected as shown.

Change the direction of motor only after it stops rotating. If the attempt is made during rotation, motor may not change the direction or change the direction after some time.
