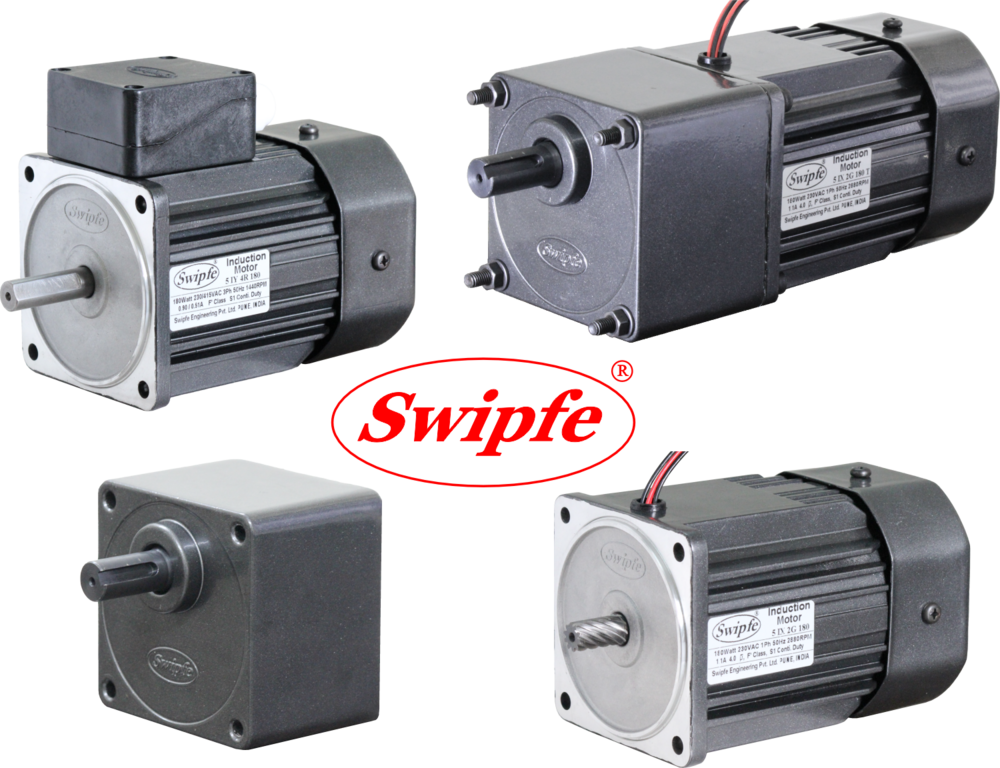

Send InquiryAC Geared Motor 180 Watt
Price 3750.0 INR/ Unit
MOQ : 1 Unit
AC Geared Motor 180 Watt Specification
- Power Rating
- Continuous
- Current Type
- AC
- Ambient Temperature
- -30 To 40 Celsius (oC)
- Cooling Method
- Fan Cooled
- Poles Number
- 4, 2
- Bearing Type
- Ball Bearing
- Horse Power
- 0.25
- Starting Type
- Electric
- Rated Voltage
- 415 Volt (V)
- Voltage
- 220-440 Volt (v)
- Torque
- 20 N-cm
- Features
- Continuous Duty Clockwise or Counter Clockwise Rotation Terminal Box or Lead Wires For Connection Totally Enclosed Fan Cooled Aluminium Body
- Rated Frequency
- 50 Hertz (HZ)
- Product Type
- FHP Motor
- Output Power
- 180 Watt (w)
- Frequency (MHz)
- 50-60 Hertz (HZ)
- Protect Feature
- Totally Enclosed
- Efficacy
- Other
- Speed
- 1500 RPM
- Power
- 0.25 Horsepower (HP)
- Color
- Black
- Usage & Applications
- Industrial
- Operating Temperature
- -30 to 40 Celsius (oC)
- Dimension (L*W*H)
- 200*90*90 Millimeter (mm)
- Weight
- 5.1 Kilograms (kg)
- Phase
- Single / Three phase
- Warranty
- 1 Year
- Conductor
- Copper
- Material
- Aluminium
- Rated Current
- 0.51 Ampere (amp)
- Frequency
- 50 Hertz (HZ)
- Shaft Diameter
- 15 Millimeter (mm)
- Mounting Type
- Flange
- IP Rating
- ip44, ip55 , ip23
AC Geared Motor 180 Watt Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Pune
- Supply Ability
- 1000 Units Per Month
- Delivery Time
- 30 Days
- Sample Available
- No
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Main Domestic Market
- All India
About AC Geared Motor 180 Watt
180 Watt
Square Flange
90mm x 90mm
Continuous Duty
Clockwise or Counter Clockwise Rotation
Terminal Box or Lead Wires For Connection
Totally Enclosed Fan Cooled Aluminium Body
Motor Specifications:
| Model | Supply | Frequency Hz |
Stall Torque Nm |
Rated Torque Nm |
Rated Speed RPM |
Rated Current Amp |
Capacitor F |
|---|---|---|---|---|---|---|---|
| 5IX4180 | Single Phase 230V | 50 | 1.45 | 1.22 | 1350 | 1.10 | 7 |
| 51Y4180 | Three Phase 230V | 50 | 1.50 | 1.34 | 1250 | 0.90 | - |
| 5IY4180 | Three Phase 415V | 50 | 1.94 | 1.22 | 1350 | 0.48 | - |
| 5IX2180 | Single Phase 230V | 50 | 0.75 | 0.61 | 2700 | 1.10 | 4 |
| 5IY2180 | Three Phase 230V | 50 | 0.66 | 0.61 | 2600 | 0.90 | - |
| 5IY2180 | Three Phase 415V | 50 | 1.10 | 0.61 | 2700 | 0.51 | - |
Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom
Gear Motor Torque Table:
The maximum permissible torque is 20 Nm
No Load speed of Motor at 50Hz is approx. 1440RPM
50Hz
Unit : N.m
| RPM | 480 | 400 | 288 | 240 | 192 | 160 | 115 | 96 | 80 | 57 | 48 | 40 | 29 | 24 | 19 | 16 | 14 | 12 | 9.6 | 8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
| Output Torque | 3.4 | 4.1 | 5.7 | 6.8 | 8.5 | 10.2 | 12.8 | 15.3 | 18.4 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.
Motor Dimensions:
Motor, Gearbox with Terminal Box
Motor Round Shaft with Terminal Box
Motor, Gearbox with Lead Wires
Key & Keyway
Max. Weight:
Motor - 3.3 kg
Gear Box - 1.7 kg
Wiring Diagram:
Wiring Diagram for Single Phase Motor
Short Black wires and connect as shown to rotate the motor in clockwise direction.
To change the direction, flip CW to CCW.
Red wires are for running winding & Black wires are for starting winding. To change the direction, interchange Black wires or Red wires.
Wiring Diagram for Three Phase Motor
Star Connection
To change the direction, interchange any two wires between U, V & W. For 415 Volt 3 Phase supply, wires are connected as shown. Short White, Black, & Blue wires and then insulate it properly.
Delta Connection
To change the direction, interchange any two wires between U, V & W.
For 230 Volt 3 Phase supply, wires are connected as shown.
Change the direction of motor only after it stops rotating. If the attempt is made during rotation, motor may not change the direction or change the direction after some time.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Induction Motor Category
Induction Gear Motor 25 Watt
Price 2250.0 INR / Unit
Minimum Order Quantity : 1 Unit
Protect Feature : Totally Enclosed
Starting Type : Capacitor
Features : Continuous Duty Clockwise or Counter Clockwise Rotation Terminal Box or Lead Wires For Connection Totally Enclosed Aluminium Body
Voltage : 220440 Volt (v)
FHP Induction Motor 90 Watt
Price 3300.0 INR / Unit
Minimum Order Quantity : 1 Unit
Protect Feature : Totally Enclosed
Starting Type : Capacitor
Features : Corrosionresistant body
Voltage : 415 Volt (v)

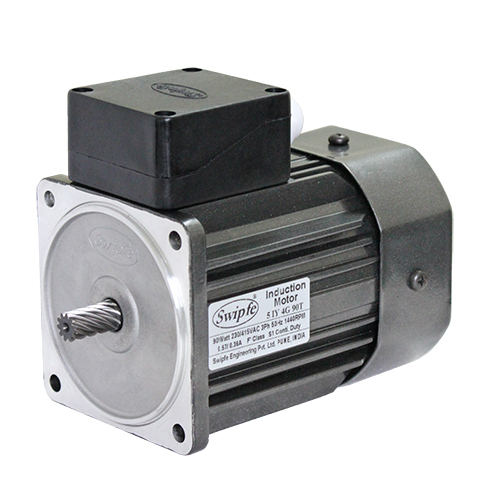

90W Induction Gear Motor
