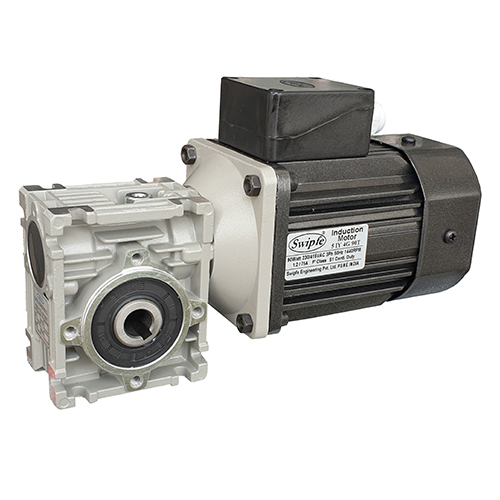

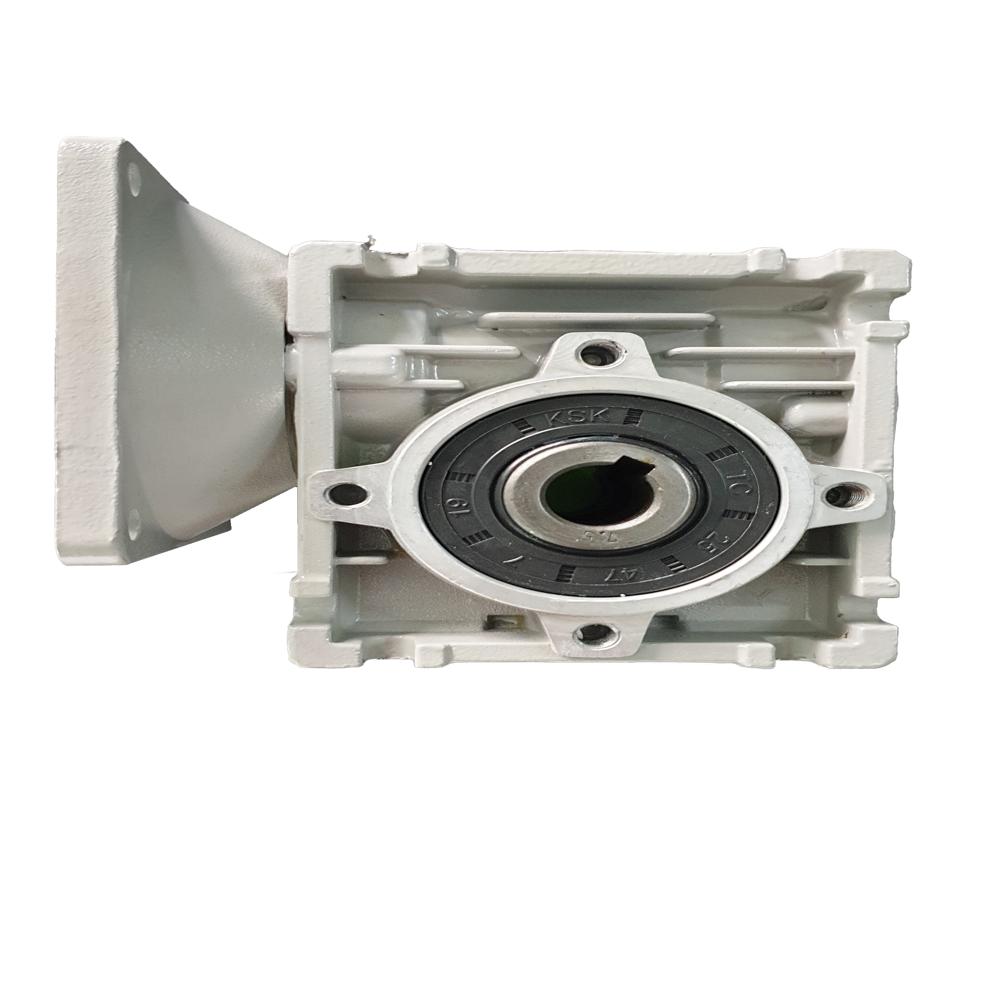

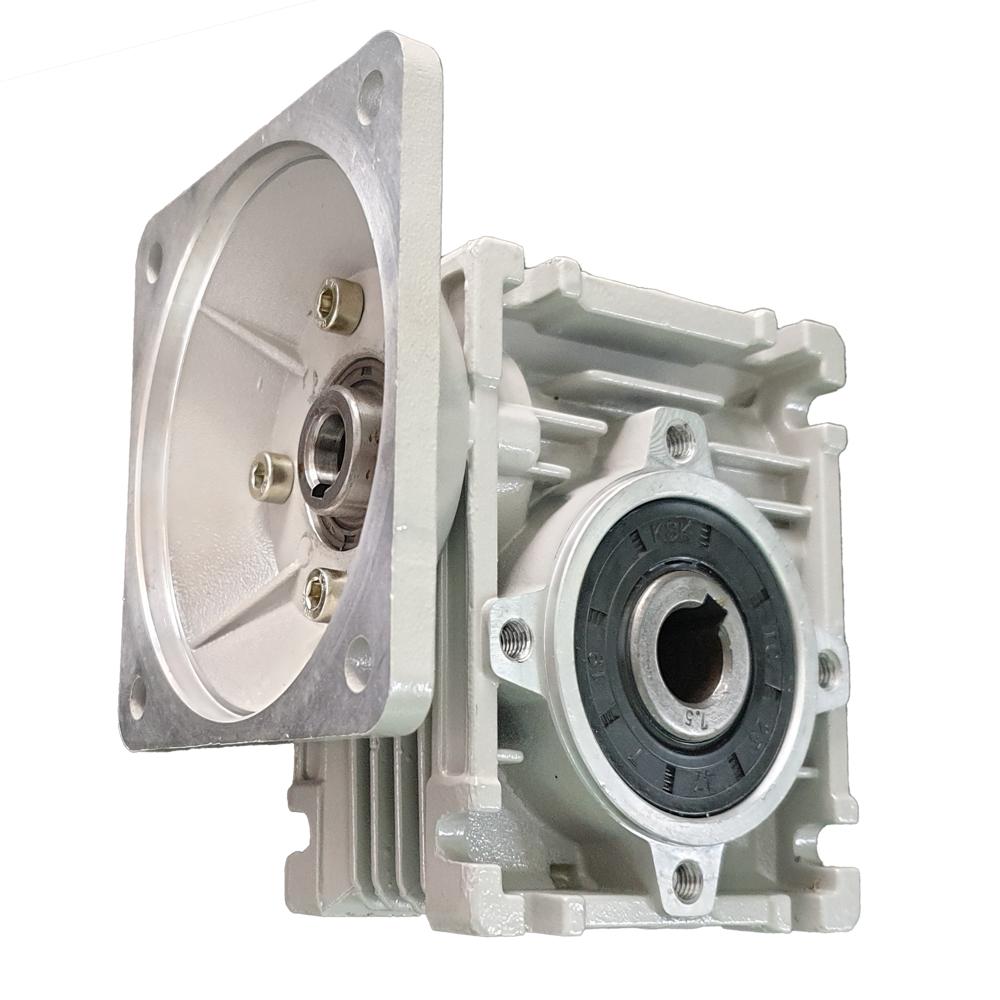

Send InquiryAC Geared Motor Worm Gearbox 90 Watt
Price 5600.0 INR/ Unit
MOQ : 1 Unit
AC Geared Motor Worm Gearbox 90 Watt Specification
- Rated Frequency
- 50 Hertz (HZ)
- Features
- Continious Running
- Current Type
- AC
- Bearing Type
- Ball Bearing
- Rated Voltage
- 230 Volt (V)
- Starting Type
- Capacitor Start
- Sealed Type
- Mechanical Seal
- Torque
- 20 N-m
- Poles Number
- 4, 2
- Ambient Temperature
- -30 To 40 Celsius (oC)
- Efficacy
- Continious
- Voltage
- 220-440 Volt (v)
- Horse Power
- 0.15
- Cooling Method
- Fan Cooled
- Product Type
- Other
- Output Power
- 90 Watt (w)
- Frequency (MHz)
- 50-60 Hertz (HZ)
- Protect Feature
- Totally Enclosed
- Speed
- 1500 RPM
- Power
- 90 Watt (w)
- Usage & Applications
- Industrial
- Color
- Black
- Dimension (L*W*H)
- 225*90*150 Millimeter (mm)
- Cable Type
- Copper
- Operating Temperature
- -30 to 50 Celsius (oC)
- Weight
- 3.6 Kilograms (kg)
- Warranty
- 1 Year
- Phase
- Single / Three phase
- Frequency
- 50 Hertz (HZ)
- Rated Current
- 0.4 Ampere (amp)
- Material
- Aluminium
- Conductor
- Copper
- Shaft Diameter
- 16 Millimeter (mm)
- Mounting Type
- Flange
- IP Rating
- ip55
AC Geared Motor Worm Gearbox 90 Watt Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Pune
- Supply Ability
- 1000 Units Per Month
- Delivery Time
- 2 Days
- Main Domestic Market
- All India
About AC Geared Motor Worm Gearbox 90 Watt
Continuous Duty
Clockwise or Counter Clockwise Rotation
Terminal Box or Lead Wires For Connection
Totally Enclosed Fan Cooled Aluminium Body
Motor Specifications:
| Model | Supply | Frequency Hz |
Stall Torque Nm |
Rated Torque Nm |
Rated Speed RPM |
Rated Current Amp |
Capacitor F |
|---|---|---|---|---|---|---|---|
| 5IX490 | Single Phase 230V | 50 | 0.86 | 0.67 | 1300 | 0.54 | 4 |
| 51Y490 | Three Phase 230V | 50 | 0.86 | 0.73 | 1250 | 0.44 | - |
| 5IY490 | Three Phase 415V | 50 | 1.10 | 0.61 | 1350 | 0.25 | - |
| 5IX290 | Single Phase 230V | 50 | 0.45 | 0.34 | 2700 | 0.46 | 2.5 |
| 5IY290 | Three Phase 230V | 50 | 0.39 | 0.33 | 2600 | 0.47 | - |
| 5IY290 | Three Phase 415V | 50 | 0.56 | 0.34 | 2700 | 0.26 | - |
Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom
Gear Motor Torque Table:
The maximum permissible torque is 20 Nm
No Load speed of Motor at 50Hz is approx. 1440RPM
