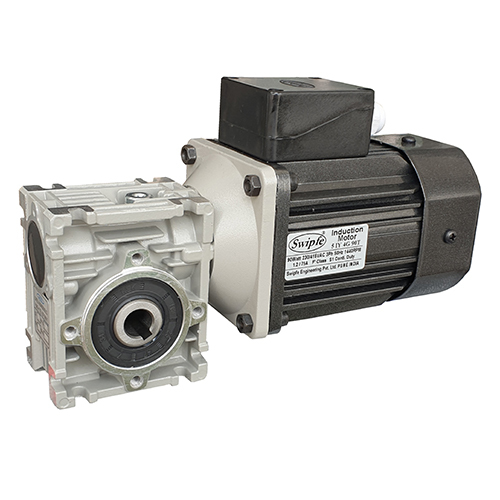

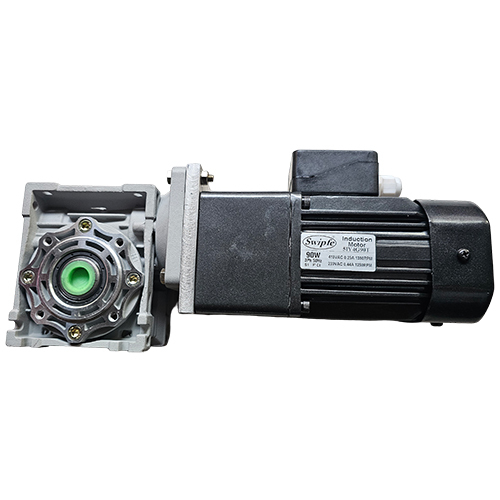

Geared Motor 180 Watt

Motor And Worm Gearbox

Motor Square Flange

90mm x 90mm

GB30W

Freq.

Hz Nm

Stall

Torque

Nm

Torque

Rated

Speed

RPM

Rated

Amp

Rated

Current Cap.

F

Model Supply

50

50

50

1.50

1.94

1.45

1.34

1.22

1.22

1250

1350

1350

0.90

0.48

1.10

--

8

Three Phase 230V

Three Phase 415V

5IX4F180 Single Phase 230V

5IY4F180

5IY4F180

50

50

50

0.86

1.10

0.86

0.72

0.61

0.62

1250

1350

1350

0.44

0.25

0.51

--

4

Three Phase 230V

Three Phase 415V

5IX4F90 Single Phase 230V

5IY4F90

5IY4F90

50

50

50

0.56

0.69

0.51

0.45

0.45

0.45

1300

1350

1350

0.29

0.18

0.42

--

3.15

Three Phase 230V

Three Phase 415V

5IX4F60 Single Phase 230V

5IY4F60

5IY4F60

RPM

Output Torque

Gear Ratio

Motor Power

288 192 144 96 72 57 48 36 29 24 18

5 7.5 10 15 20 25 30 40 50 60 80

5.0 7.8 10.0 14.0 18.0 21.0 24.0 14.0 17.0 19.0 14.0

180 180 180 180 180 180 180 90 90 90 60

Motor Specifications:

Continuous Duty

Clockwise or Counter Clockwise Rotation

Terminal Box or Lead Wires For Connection

Totally Enclosed Fan Cooled Aluminium Body

Gearmotor Torque Table:

The maximum permissible torque is 24 Nm

No Load speed of Motor at 50Hz is approx. 1440RPM

50Hz Unit : Nm

The Gear boxes are sold seperately.

The speed of geared motor is calculated by dividing motors no load speed by the gear ratio.

The actual speed is less than the displayed value, depending upon the load.

Characteristics, specifications and dimensions are subject to change without notice.

Max. Weight:

Motor:- 2.5 - 3.3kg

Gear Box:- 1.1 kg

Dimensions:

Motor And Worm Gearbox

5+0.05

16.3

Hollow Shaft

Worm Gearbox

54

56

Motor, Gearbox with Lead Wires

Motor, Gearbox with Terminal Box

8

120

22 65

8

135

Lead Wire Length 300mm

58

90 35

90

90

Lead Wire Length 300mm

56

65

65

80

97

80

97

44

97

30

44 40

27

55

80 56

71

97

14

104

25

55

7

25

25

71

14

18

25 25

Wiring Diagrams:

Wiring Diagram for Single Phase Motor

Wiring Diagram for Three Phase Motor

Change the direction of motor only after it stops rotating. If the attempt is made during

rotation, motor may not change the direction or change the direction after some time.

To change the direction, interchange any two wires

between U, V & W. For 230 Volt 3 Phase supply,

wires are connected as shown.

To change the direction, interchange any two wires

between U, V & W. For 415 Volt 3 Phase supply, wires

are connected as shown. Short White, Black, & Blue

wires and then insulate it properly.

Short Black wires and connect as shown to rotate

the motor in clockwise direction.

To change the direction, flip CW to CCW.

Red wires are for running winding & Black

wires are for starting winding. To change the

direction, interchange Black wires or Red wires.

Star Connection Delta Connection

Specifications are subject to change without notice. www.swipfe.com

Black 1

Black 2

Red 1

~ Red 2

CW

230 Volt

1 Phase

CW

230 Volt

1 Phase

Black

Black

Red

White

CW

CCW

~

U

W

Yellow

Brown

White

Black

Blue

CW

415 Volt

3 Phase

V Red U

V

W

Yellow

Red

Brown

White

Black

Blue

CW

230 Volt

3 Phase

Motor And Worm Gearbox
