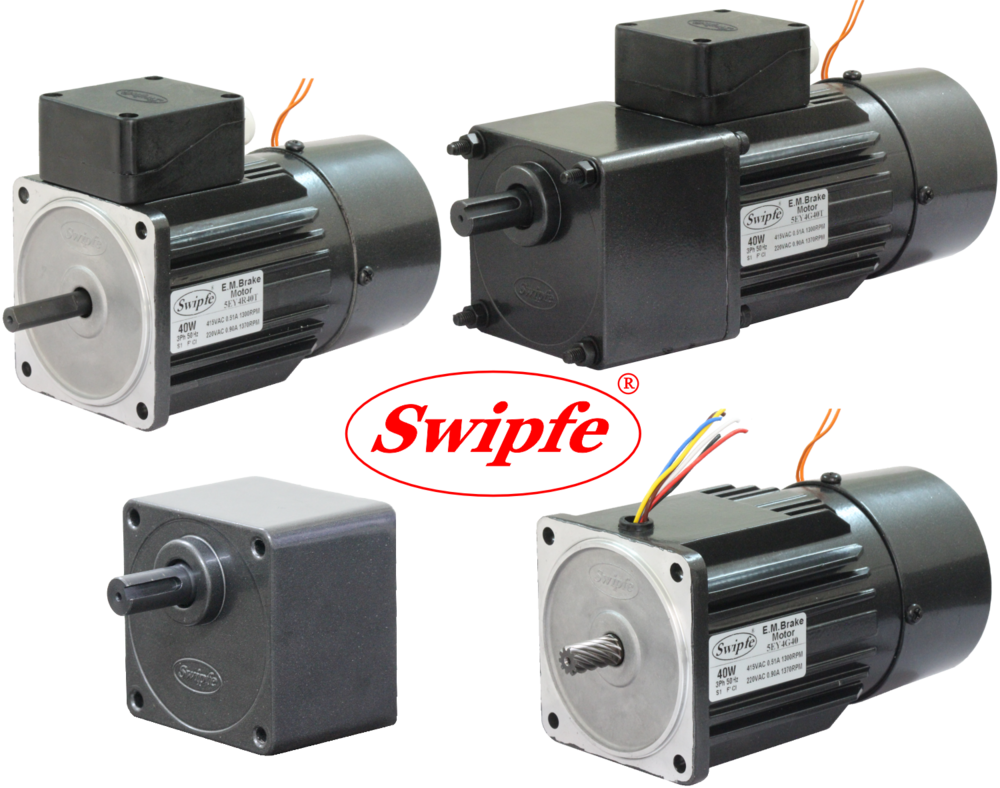

Brake Motor 40Watt
4740.00 - 8040.00 INR/Unit
Product Details:
- Conductor Copper
- Warranty 1 Year
- Poles Number 4, 2
- Rated Voltage 230 Volt (V)
- Cooling Method Self cooled
- Power Rating Continuous
- Material Aluminium
- Click to View more
X
Brake Motor 40Watt Price And Quantity
- 4740.00 - 8040.00 INR/Unit
- 1 Unit
Brake Motor 40Watt Product Specifications
- Self cooled
- 40 Watt (w)
- Continuous
- Other
- Aluminium
- Flange
- ip55
- 0.05
- 0.05 Horsepower (HP)
- 220-440 Volt (v)
- Single / Three phase
- Ball Bearing
- 50 Hertz (HZ)
- Stable performance
- Industrial
- 3.3 Kilograms (kg)
- Electric Start
- Copper
- 8 - 1400 RPM
- Brake Motor
- 15 Millimeter (mm)
- 1 Year
- Dark
- Totally Enclosed
- 50-60 Hertz (HZ)
- 4, 2
- 230 Volt (V)
Brake Motor 40Watt Trade Information
- 500 Unit Per Month
- 2-10 Days
- All India
Product Description
40 Watt
Square Flange
90mm x 90mm
Continuous Rating with Frequent Start Stop,
Load Holding & Minimum Overrun.
Electromagnetic Fail Safe Brake (Power Off activated)
Fitted at the Back of Induction Motor.
Rotates in Clockwise or Counter Clockwise Direction.
Terminal Box or Lead Wires for Connection.
Motor Specifications:
| Model | Supply | Frequency Hz |
Stall Torque Nm |
Rated Torque Nm |
Rated Speed RPM |
Rated Current Amp |
Capacitor F |
|---|---|---|---|---|---|---|---|
| 5EX440 | Single Phase 230V | 50 | 0.34 | 0.28 | 1350 | 0.27 | 2 |
| 5EY440 | Three Phase 230V | 50 | 0.56 | 0.28 | 1350 | 0.25 | - |
| 5EY440 | Three Phase 415V | 50 | 0.69 | 0.28 | 1400 | 0.17 | - |
| 5EX240 | Single Phase 230V | 50 | 0.20 | 0.14 | 2800 | 0.26 | 1 |
| 5EY240 | Three Phase 230V | 50 | 0.22 | 0.14 | 2800 | 0.23 | - |
| 5EY240 | Three Phase 415V | 50 | 0.33 | 0.14 | 2850 | 0.16 | - |
Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom
Gear Motor Torque Table:
The maximum permissible torque is 20 Nm
No Load speed of Motor at 50Hz is approx. 1440RPM
50Hz
Unit : N.m
| RPM | 480 | 400 | 288 | 240 | 192 | 160 | 115 | 96 | 80 | 57 | 48 | 40 | 29 | 24 | 19 | 16 | 14 | 12 | 9.6 | 8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
| Output Torque | 0.72 | 0.87 | 1.2 | 1.4 | 1.8 | 2.2 | 2.7 | 3.2 | 3.9 | 4.9 | 5.8 | 7.0 | 8.8 | 10.6 | 13.3 | 15.9 | 17.7 | 20.0 | 20.0 | 20.0 |
The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.
Motor Dimensions:

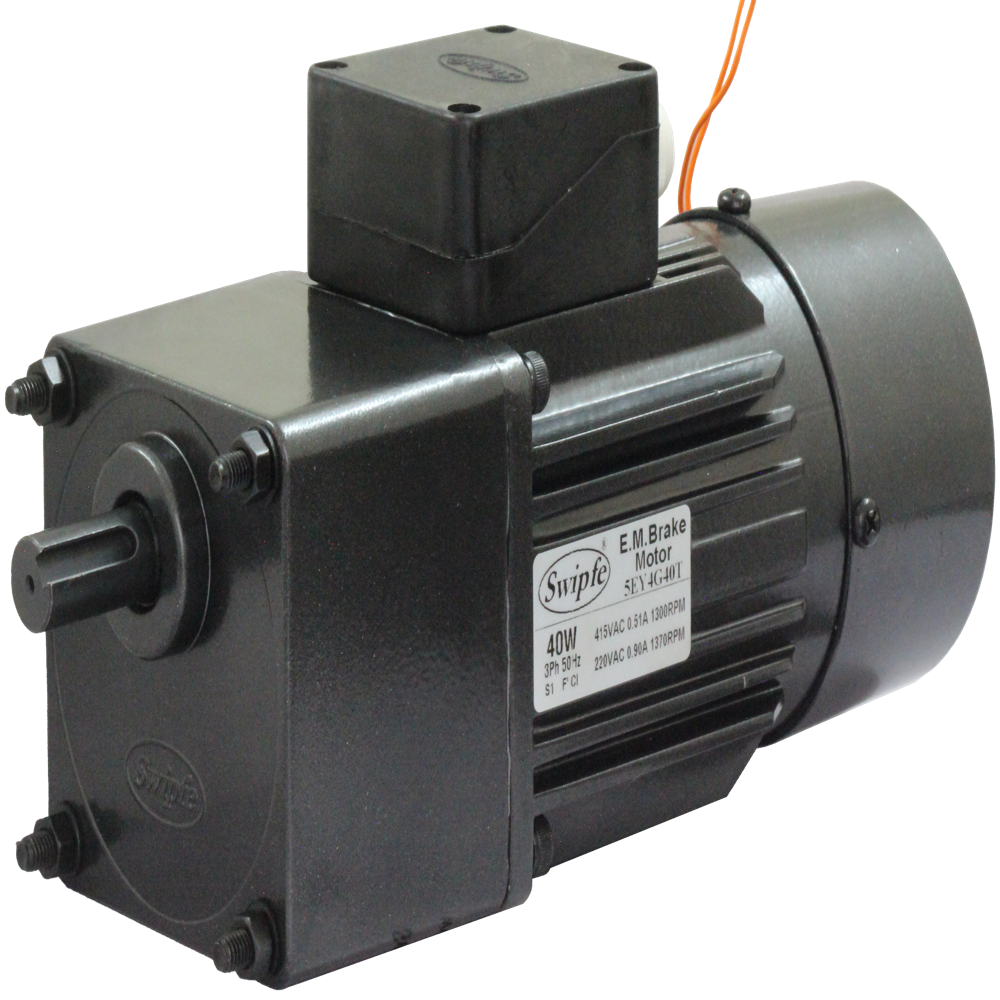

Motor, Gearbox with Terminal Box

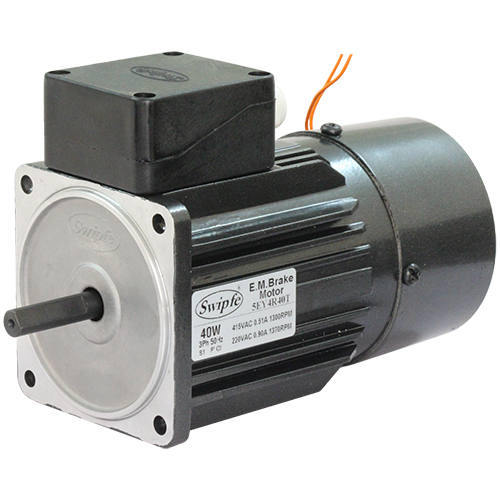

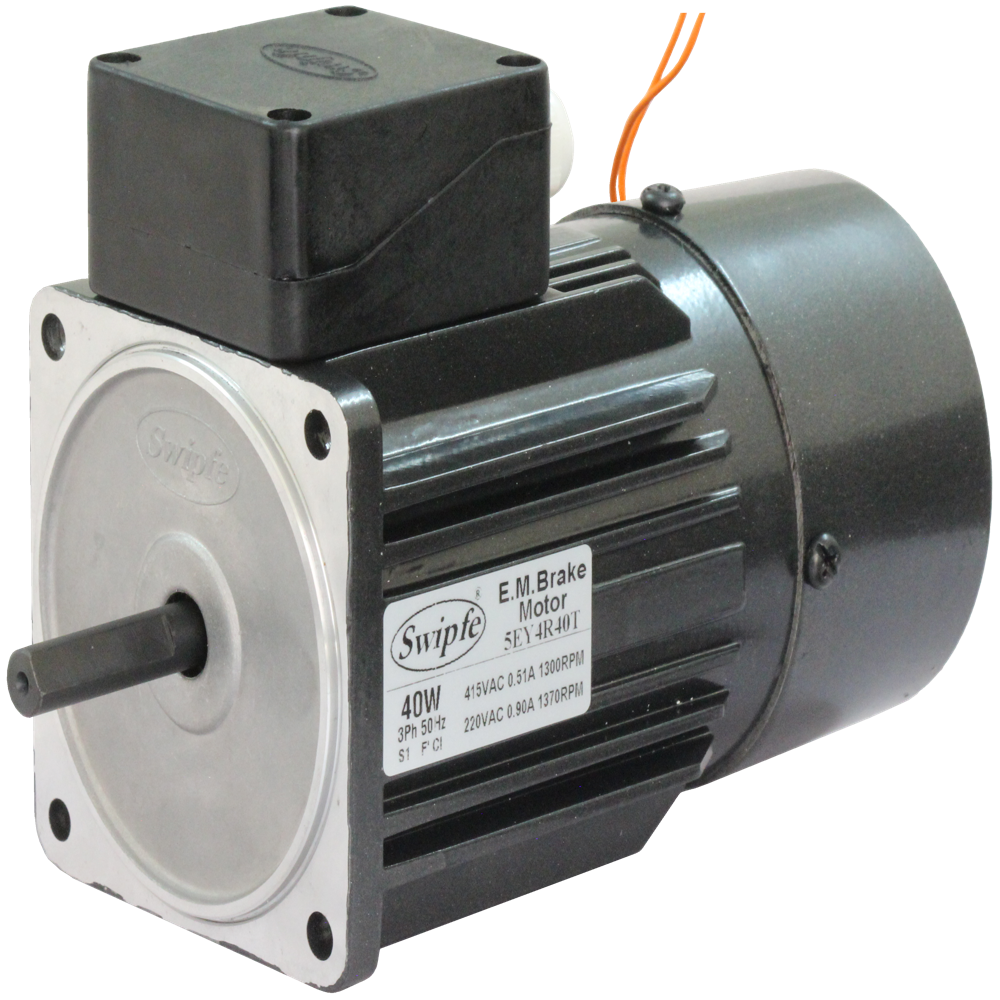

Motor Round Shaft with Terminal Box

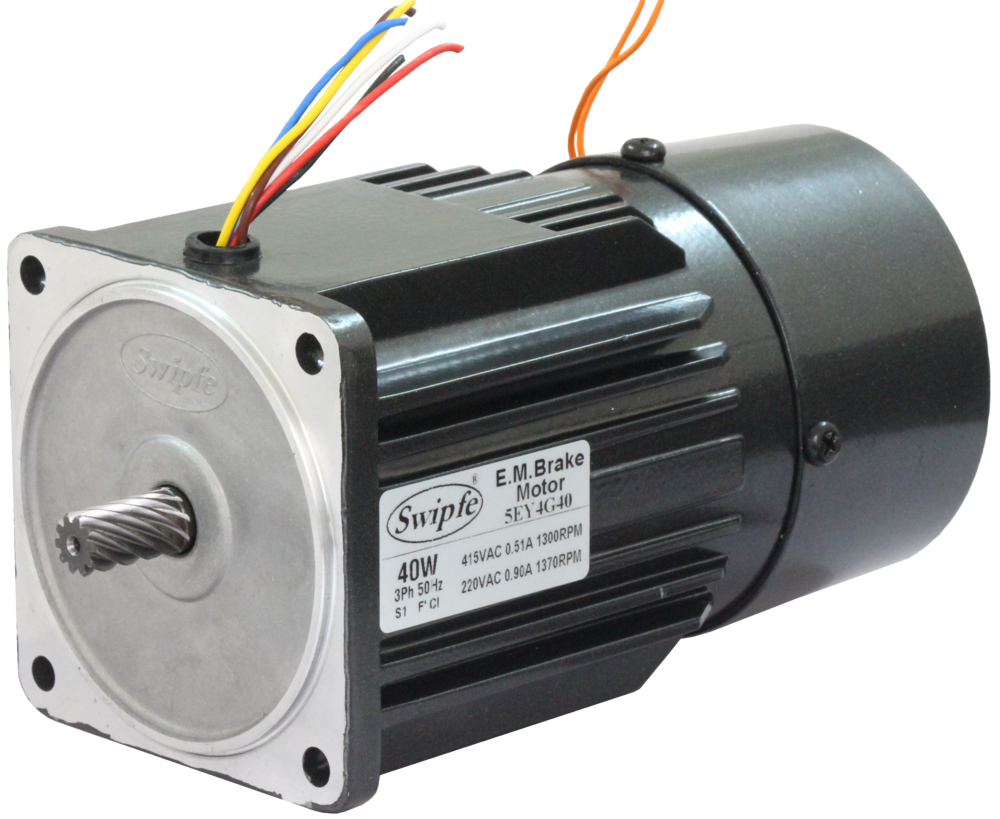

Motor, Gearbox with Lead Wires
Key & Keyway
Max. Weight:
Motor - 3.3 kg
Gear Box - 1.7 kg
