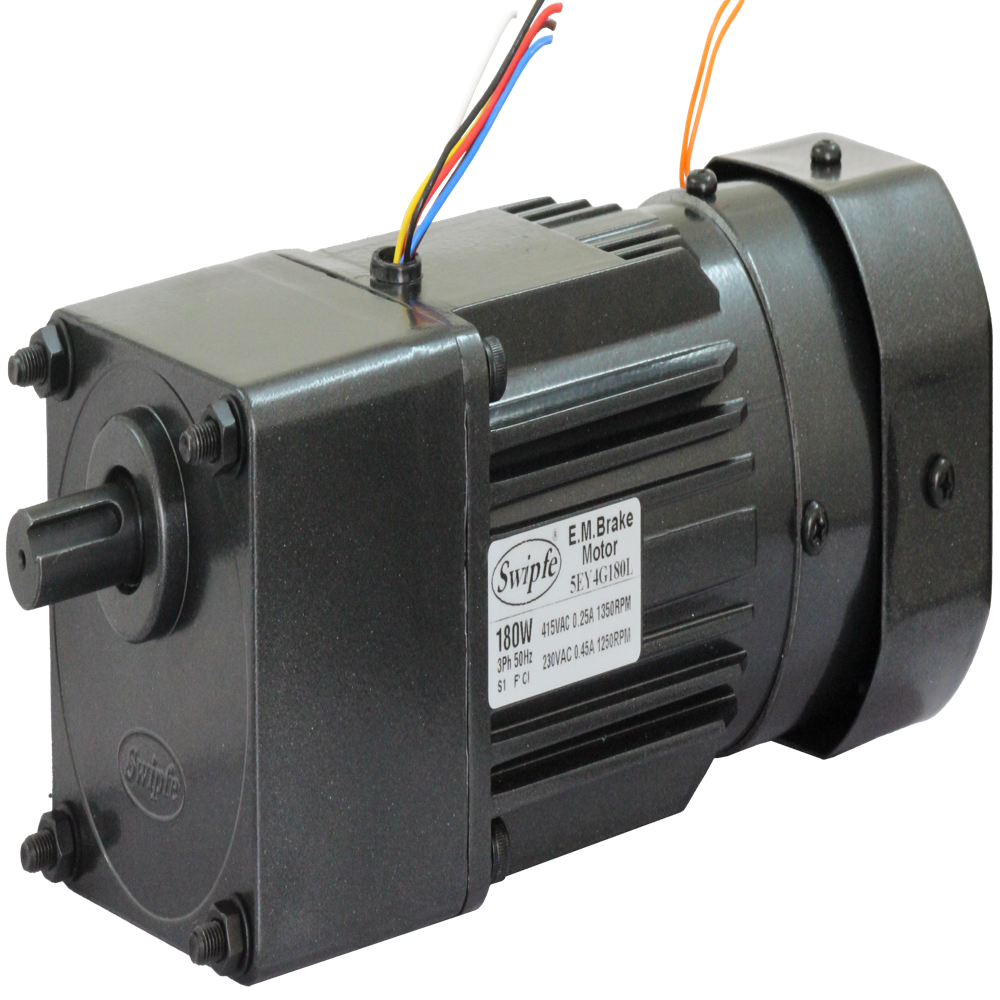

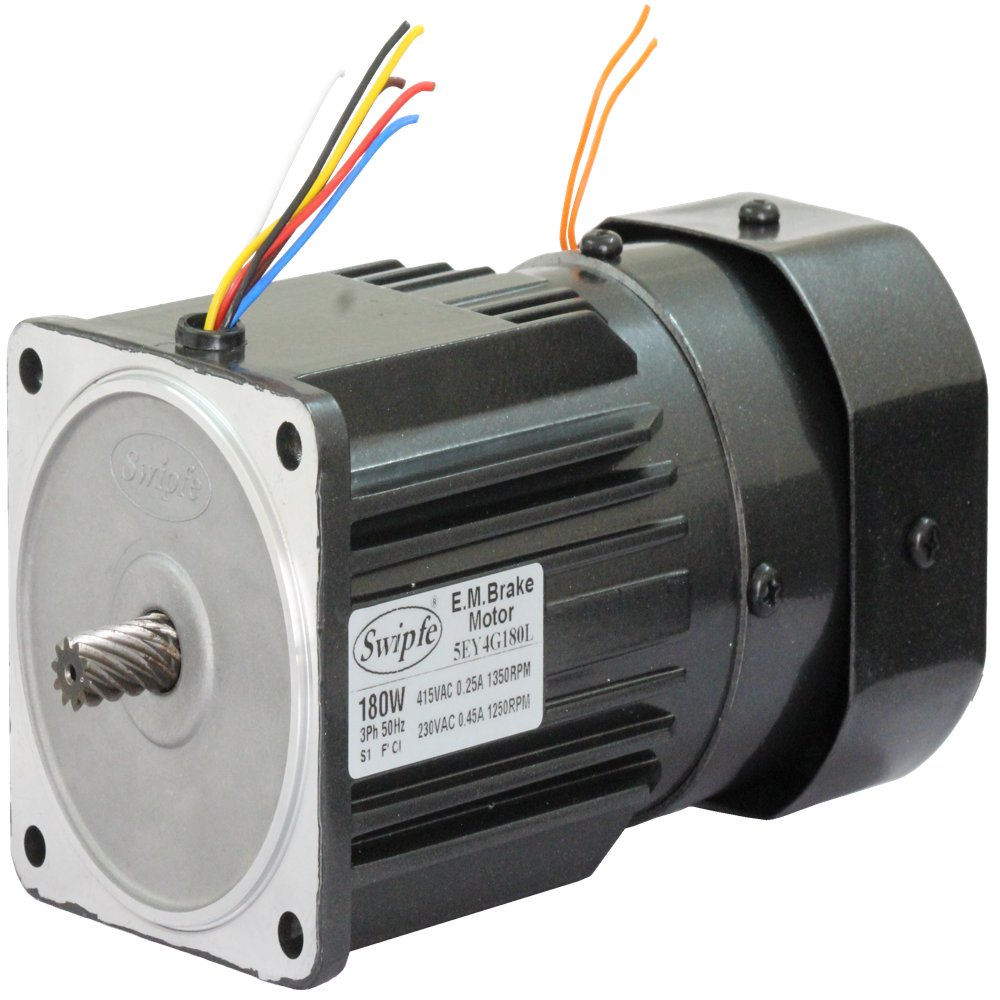

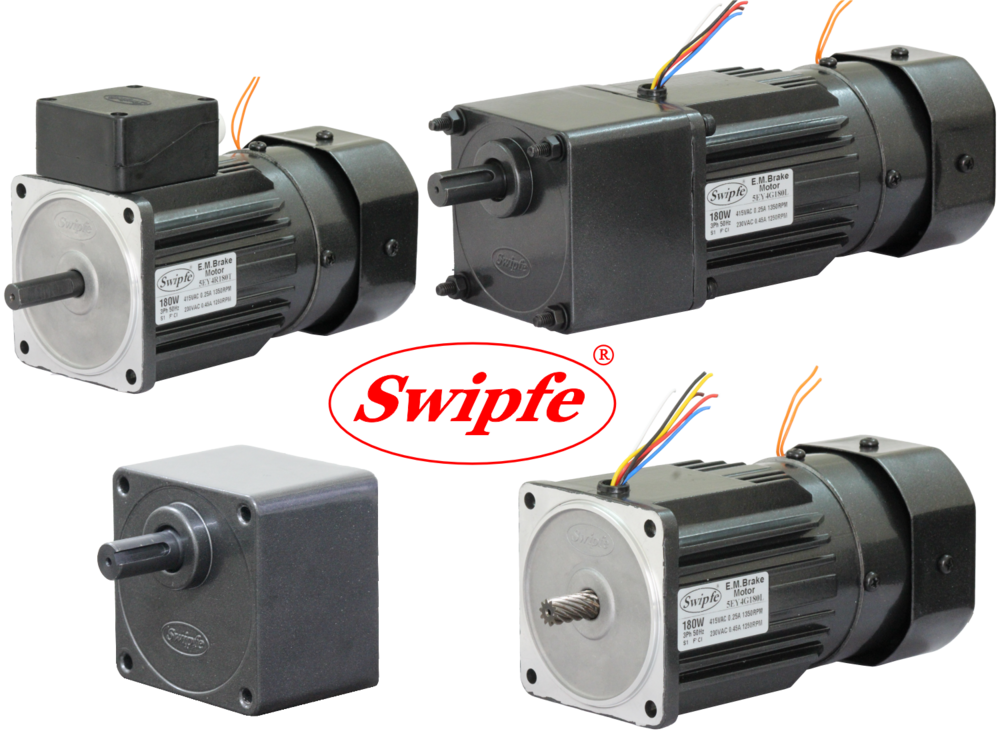

EM Brake Motor 180 Watt

Name: EM Brake Motor 180 Watt
Brand: Swipfe Engineering Pvt. Ltd.
Price: 6000.0 INR
Availability: InStock

Price 6000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

EM Brake Motor 180 Watt Specification

Voltage
220-440 Volt (v)

Bearing Type
Ball Bearing

Ambient Temperature
-30 ~ +40 Celsius (oC)

Poles Number
4, 2

Torque
20 N-m

Rated Voltage
415 Volt (V)

Current Type
AC

Horse Power
0.25

Rated Frequency
50 Hertz (HZ)

Cooling Method
Fan Cooled

Power Rating
Continuous

Product Type
Brake Motor

Output Power
180 Watt (w)

Frequency (MHz)
50-60 Hertz (HZ)

Protect Feature
Totally Enclosed

Efficacy
Other

Speed
8 - 1400 RPM

Starting Type
Electric Start

Power
0.25 Horsepower (HP)

Color
Dark

Usage & Applications
Industrial

Dimension (L*W*H)
283*90*125 Millimeter (mm)

Weight
4.25 Kilograms (kg)

Phase
Single / Three phase

Warranty
1 Year

Conductor
Copper

Features
Durable

Material
Aluminium

Shaft Diameter
15 Millimeter (mm)

Mounting Type
Flange Mount

IP Rating
ip44

EM Brake Motor 180 Watt Trade Information

Minimum Order Quantity
1 Piece

FOB Port
MUMBAI

Supply Ability
500 Pieces Per Month

Delivery Time
15 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About EM Brake Motor 180 Watt

180 Watt

Square Flange

90mm x 90mm

Continuous Rating with Frequent Start Stop,
Load Holding & Minimum Overrun.
Electromagnetic Fail Safe Brake (Power Off activated)
Fitted at the Back of Induction Motor.
Rotates in Clockwise or Counter Clockwise Direction.

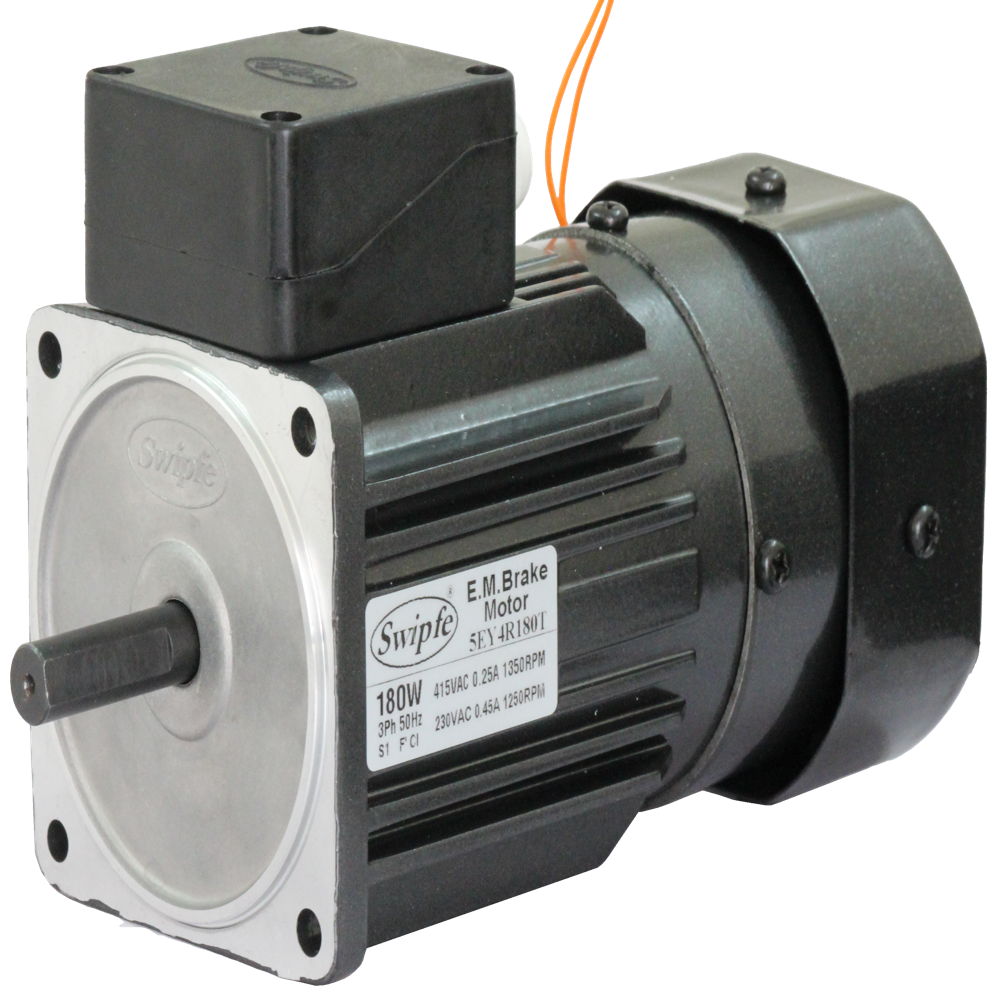

Terminal Box or Lead Wires for Connection.

180watt-emb-motor

Motor Specifications:

Model	Supply	Frequency Hz	Stall Torque Nm	Rated Torque Nm	Rated Speed RPM	Rated Current Amp	Capacitor F
5EX4180	Single Phase 230V	50	1.45	1.22	1350	1.10	7
5EY4180	Three Phase 230V	50	1.50	1.34	1250	0.90	-
5EY4180	Three Phase 415V	50	1.94	1.22	1350	0.48	-
5EX2180	Single Phase 230V	50	0.75	0.61	2700	1.10	4
5EY2180	Three Phase 230V	50	0.66	0.61	2600	0.90	-
5EY2180	Three Phase 415V	50	1.10	0.61	2700	0.51	-

Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom

Gear Motor Torque Table:

The maximum permissible torque is 20 Nm
No Load speed of Motor at 50Hz is approx. 1440RPM

50Hz

Unit : N.m

RPM	480	400	288	240	192	160	115	96	80	57	48	40	29	24	19	16	14	12	9.6	8
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	3.4	4.1	5.7	6.8	8.5	10.2	12.8	15.3	18.4	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0

The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.
