Induction Gear Motor 25 Watt Induction Gear Motor 25 Watt
Induction Gear Motor 25 Watt
Induction Gear Motor 25 Watt

Induction Gear Motor 25 Watt

2160.00 - 4710.00 INR/Unit

Product Details:

  • Usage & Applications Industrial
  • Phase Single / Three phase
  • Rated Frequency 50 Hertz (HZ)
  • Torque 8 N-m
  • Cooling Method NA
  • Bearing Type Ball Bearing
  • Material Aluminium
  • Click to View more
X

Induction Gear Motor 25 Watt Price And Quantity

  • 2160.00 - 4710.00 INR/Unit
  • 1 Unit

Induction Gear Motor 25 Watt Product Specifications

  • 4, 2
  • Aluminium
  • 220-440 Volt (v)
  • 50-60 Hertz (HZ)
  • Ball Bearing
  • 10 Millimeter (mm)
  • 1500 RPM
  • 50 Hertz (HZ)
  • Industrial
  • Single / Three phase
  • NA
  • 8 N-m
  • Asynchronous Motor
  • 20
  • Flange
  • Other
  • Durable
  • 230 Volt (V)
  • Copper
  • 25 Watt (w)
  • 0.03
  • Electric Start
  • 50 Hertz (HZ)
  • 25 Watt (w)
  • 1 Year
  • Totally Enclosed

Induction Gear Motor 25 Watt Trade Information

  • Pune
  • 1000 Unit Per Month
  • 30 Days
  • Yes
  • Sample costs shipping and taxes has to be paid by the buyer
  • All India

Product Description

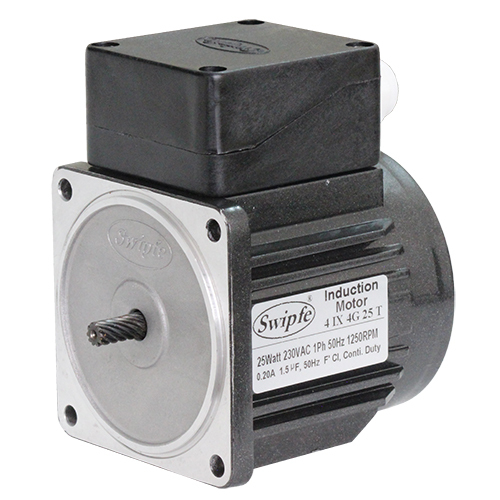

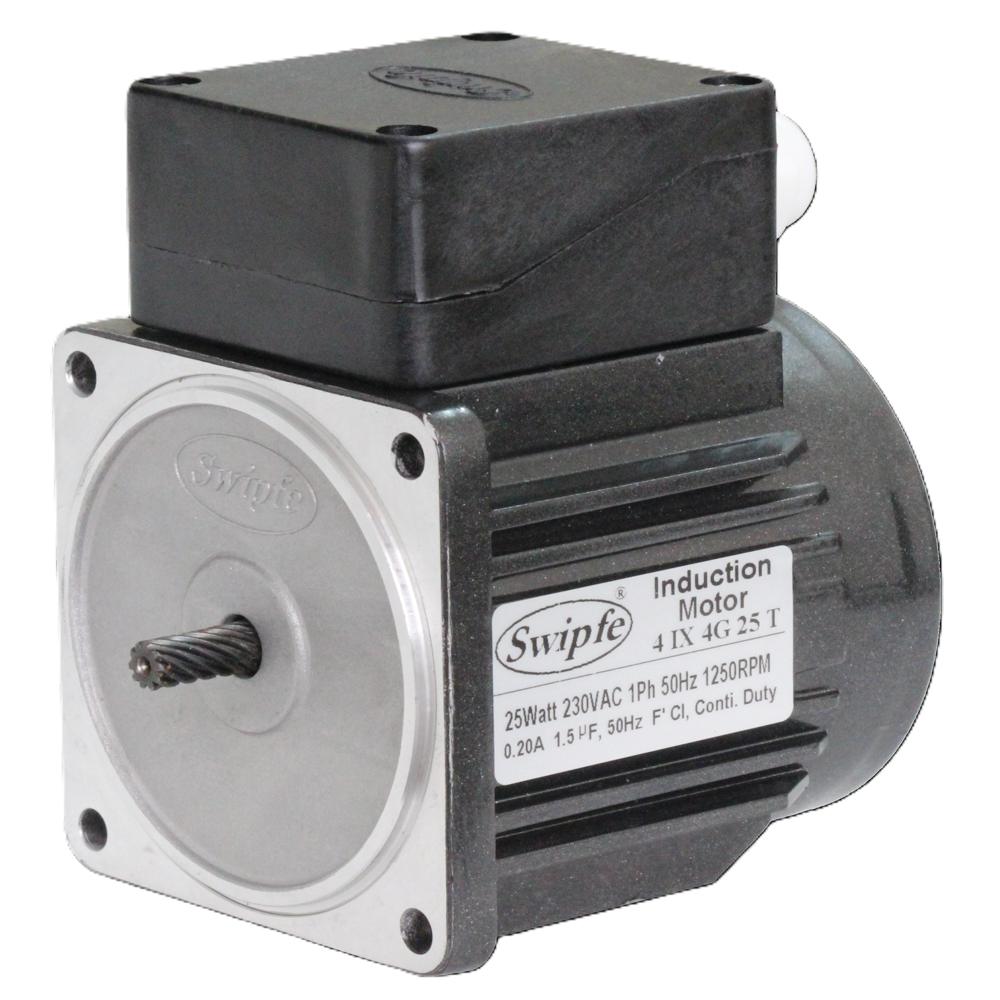

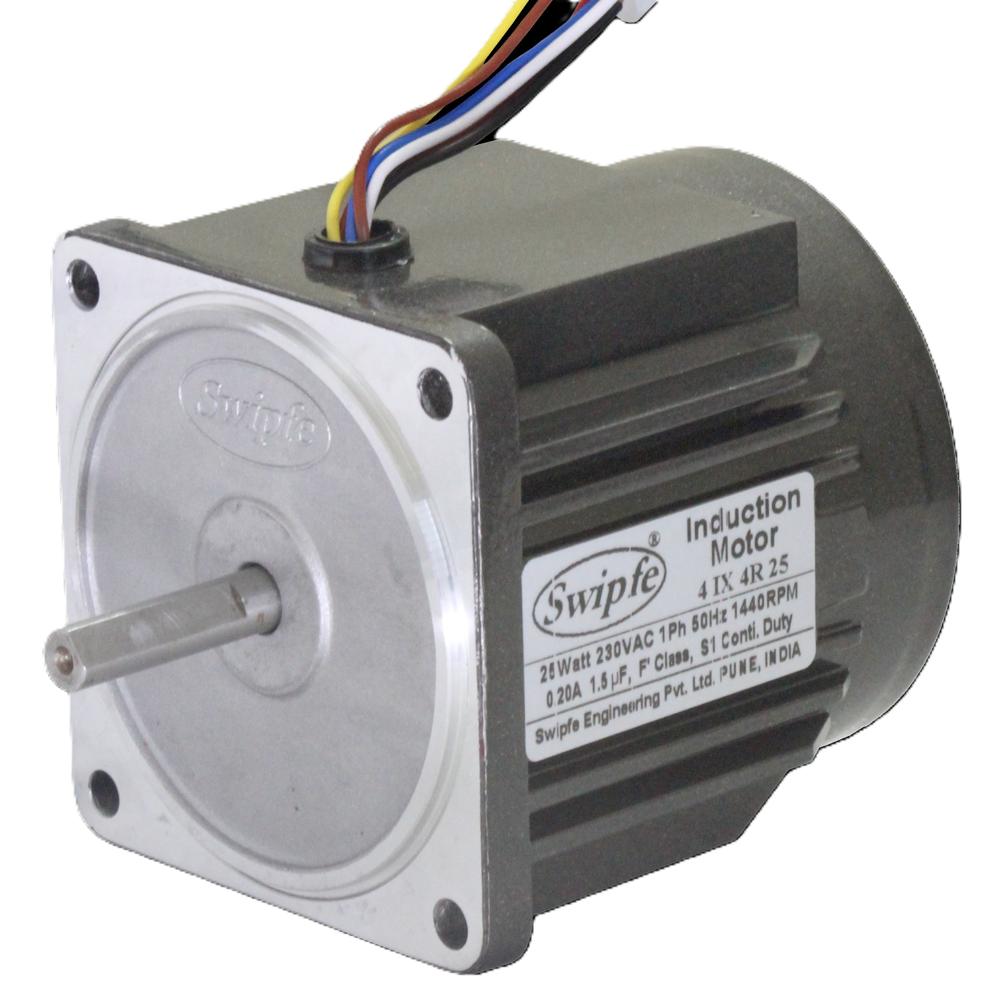

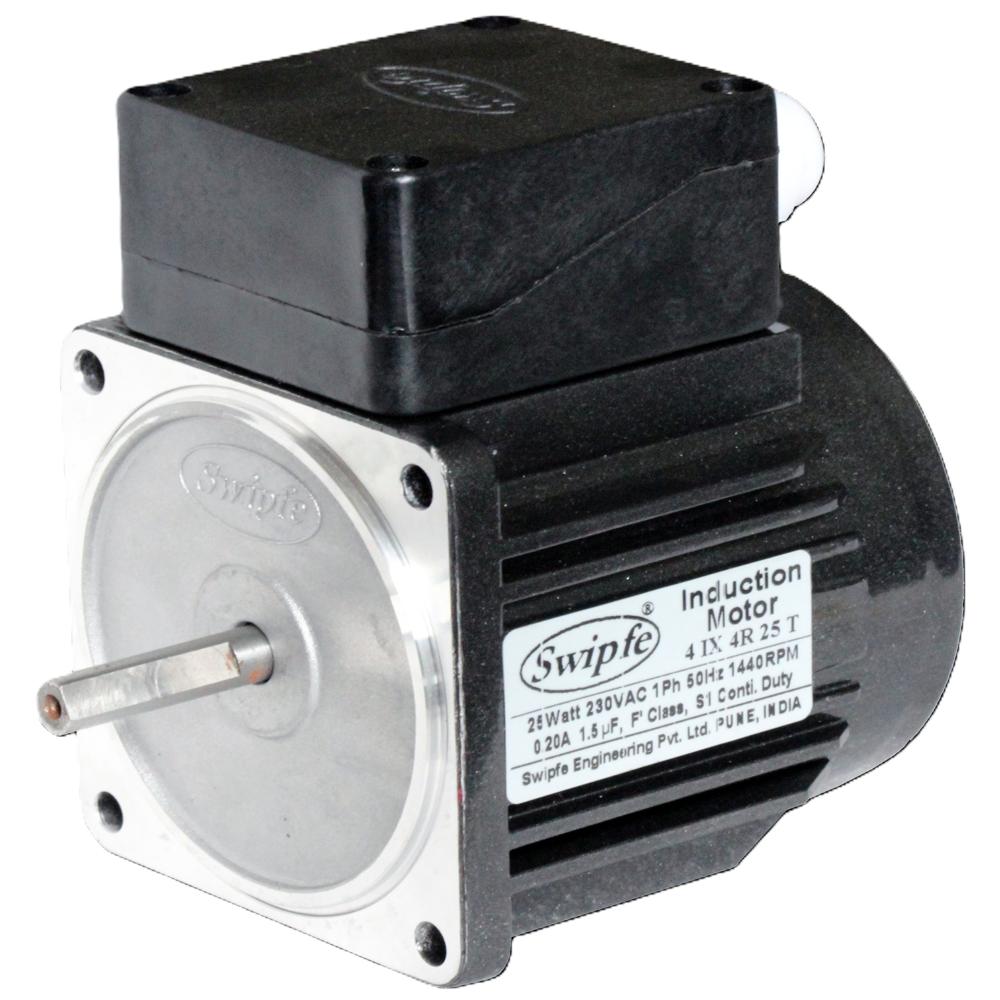

25 Watt

Square Flange
80mm x 80mm


Continuous Duty,
Clockwise or Counter Clockwise Rotation
Terminal Box or Lead Wires For Connection
Totally Enclosed Aluminium Body

25watt-induction-motor

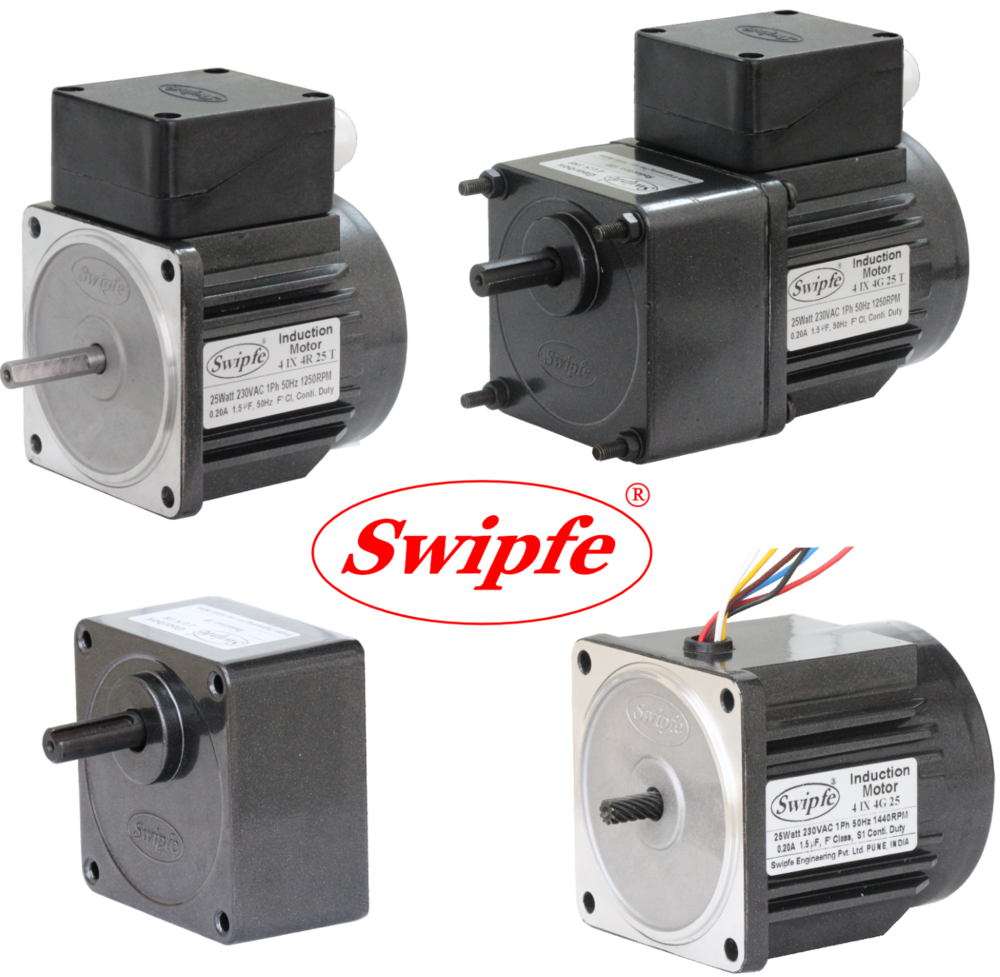

Motor Specifications:

Model Supply Frequency
Hz
Stall Torque
Nm
Rated Torque
Nm
Rated Speed
RPM
Rated Current
Amp
Capacitor
F
4IX425 Single Phase 230 Volt 50 0.27 0.19 1250 0.20 1.5
4IY425 Three Phase 230 Volt 50 0.39 0.19 1250 0.18 -
4IY425 Three Phase 415 Volt 50 0.51 0.19 1300 0.13 -

Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom

Gear Motor Torque Table:

The maximum permissible torque is 8 N.m
No Load speed of Motor at 50Hz is approx. 1440RPM

50 Hz
Unit : N.m

RPM 480 400 288 240 192 160 115 96 80 57 48 40 29 24 19 16 14 12 9.6 8
Gear Ratio 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180
Output Torque 0.4 0.5 0.7 0.9 1.1 1.3 1.9 2.3 2.7 3.4 4.1 5.0 6.1 7.4 8.0 8.0 8.0 8.0 8.0 8.0

The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.

Motor Dimensions:

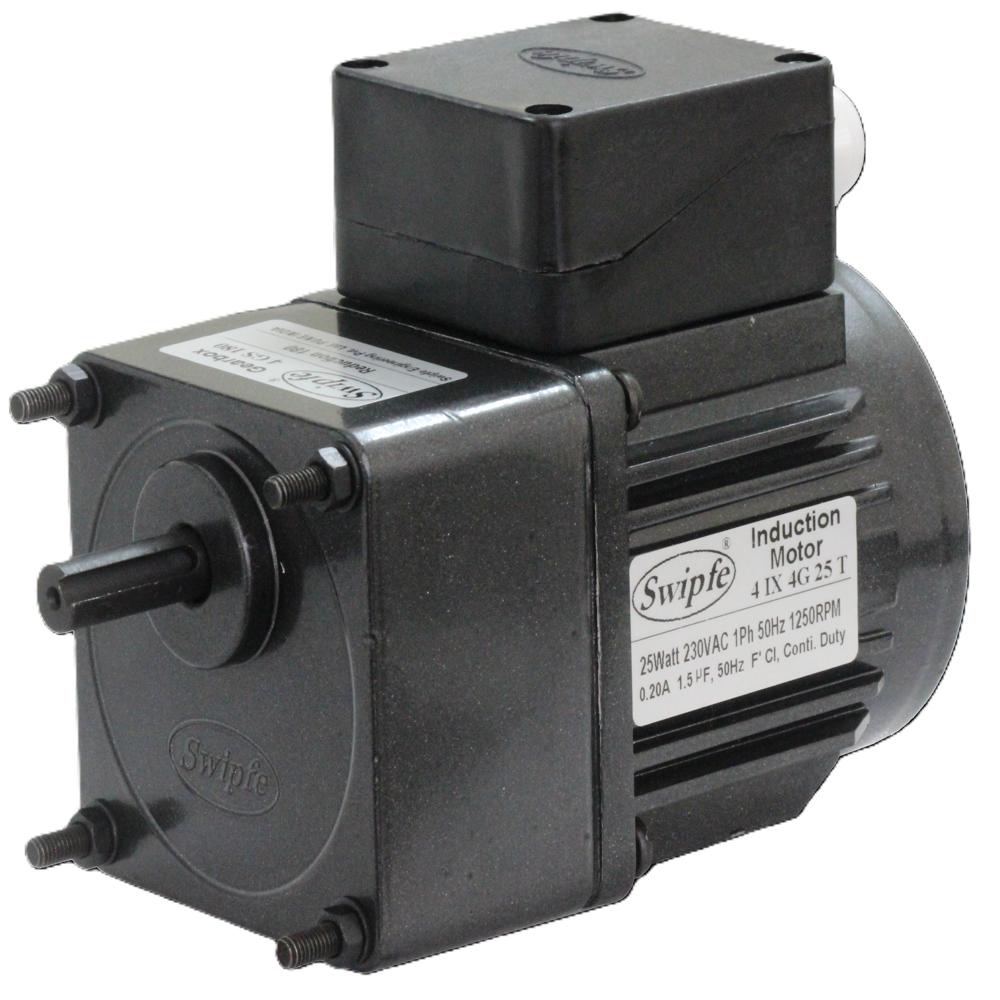

Motor, Gearbox with Terminal Box

25watt-induction-motor-motor-Motor-Gearbox-With-Terminal-Box

25watt-induction-motor-motor-Motor-Gearbox-With-Terminal-Box




Motor Round Shaft with Terminal Box

25watt-induction-motor-round-shaft-with-terminal-box

25watt-induction-motor-round-shaft-with-terminal-box




Motor, Gearbox with Lead Wires

25watt-induction-motor-gearbox-with-lead-wires-side-view

25watt-induction-motor-gearbox-with-lead-wires-side-view




Key & Keyway

25watt-induction-motor-Motor-Gearbox

Max. Weight:

Motor - 1.4 kg

Gear Box - 0.75 kg


Wiring Diagram:


Wiring Diagram for Single Phase Motor

25watt-induction-motor-Wiring-Diagram-For-Single-Phase-Motor

Short Black wires and connect as shown to rotate the motor in clockwise direction.
To change the direction, flip CW to CCW.

25watt-induction-motor-Wiring-Diagram-For-Single-Phase-Motor

Red wires are for running winding & Black wires are for starting winding. To change the direction, interchange Black wires or Red wires.


Wiring Diagram for Three Phase Motor

Star Connection

25watt-Induction-motor-3Ph-Star-Connection

To change the direction, interchange any two wires between U, V & W. For 415 Volt 3 Phase supply, wires are connected as shown. Short White, Black, & Blue wires and then insulate it properly.

Delta Connection

25watt-Induction-motor-3Ph-Delta-Connection

To change the direction, interchange any two wires between U, V & W.
For 230 Volt 3 Phase supply, wires are connected as shown.

Change the direction of motor only after it stops rotating. If the attempt is made during rotation, motor may not change the direction or change the direction after some time.
