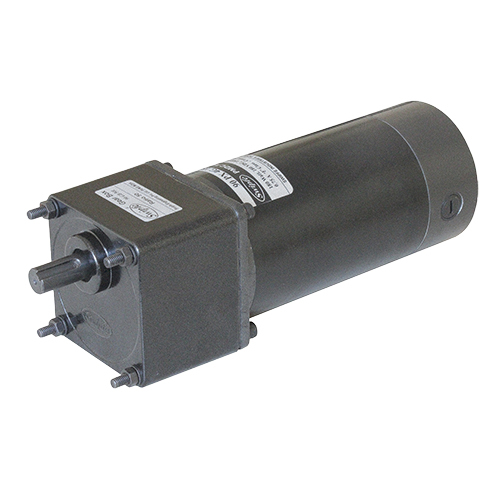

PMDC Gear Motor 180 watt

Price 3360.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

PMDC Gear Motor 180 watt Specification

Features
Corrosion-resistant body

Product Type
FHP Motor,PMDC Motor,Torque Motor,Reversible Motor,Brake Motor,Centrifugal Blower

Frequency (MHz)
50-60 Hertz (HZ)

Protect Feature
Totally Enclosed

Usage & Applications
Industrial

Color
Grey

Phase
Single / Three phase

Material
Metal

PMDC Gear Motor 180 watt Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
500 Units Per Month

Delivery Time
Days

Main Domestic Market
All India

About PMDC Gear Motor 180 watt

180 Watt

Square Flange

90mm x 90mm

Replaceable Carbon Brush Permanent Magnet Motor.
Rotates in Clockwise or Counter Clockwise Direction.
Continuous Rating, Lead Wires for Connection.

PMDC-Motor-180W

Motor Specifications:

Model	Supply	Current A	Rated Torque Nm	Rated Speed RPM
5PW4180	90V	2.2	1.26	1350
5PY4180	180V	1.1	1.26	1350

Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom

Gear Motor Torque Table:

The maximum permissible torque is 20 Nm

50Hz

Unit : N.m

RPM	500	416	300	250	200	166	120	100	83	60	50	41	30	25	20	16	15	12.5	10	8.3
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	3.1	3.7	5.1	6.1	7.6	9.2	11.5	13.8	16.5	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0

The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.
