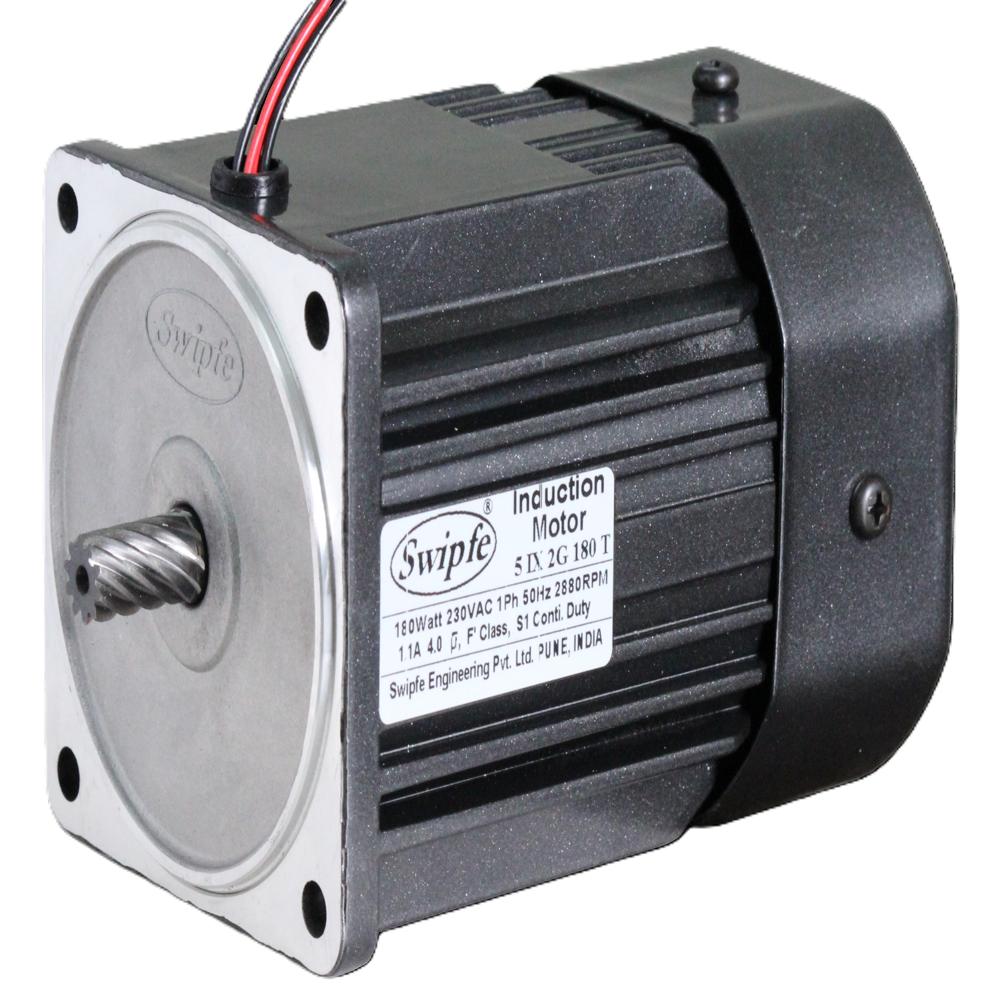

Reversible Motor 180 Watt

Price 4080.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Reversible Motor 180 Watt Specification

Features
Square Flange 90mm x 90mm Short Duty, 30 Minute Rating Continuously Acting Internal Brakes Quick Reversal Of Direction Of Rotation Terminal Box or Lead Wires For Connection Totally Enclosed Fan Cooled Aluminium Body

Rated Frequency
50 Hertz (HZ)

Torque
20 N-m

Current Type
AC

Ambient Temperature
-30 to 40 Celsius (oC)

Horse Power
0.25

Poles Number
4, 2

Voltage
415 Volt (v)

Rated Voltage
230 Volt (V)

Power Rating
Short Duty

Starting Type
Electric

Product Type
Other

Output Power
180 Watt (w)

Frequency (MHz)
50 Hertz (HZ)

Protect Feature
Totally Enclosed

Speed
8 - 3000 RPM

Power
180 Watt (w)

Usage & Applications
Industrial

Color
Black

Dimension (L*W*H)
238*90*125 Millimeter (mm)

Operating Temperature
40 Celsius (oC)

Weight
3.5 Kilograms (kg)

Phase
Single / Three phase

Warranty
1 Year

Frequency
50 Hertz (HZ)

Rated Current
0.6 Ampere (amp)

Material
Aluminium

Conductor
Copper

IP Rating
Ip21, ip23, ip44, ip55

Reversible Motor 180 Watt Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Pune

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
5 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Middle East, Africa

Main Domestic Market
All India

About Reversible Motor 180 Watt

180 Watt

Square Flange

90mm x 90mm

Short Duty, 30 Minute Rating
Continuously Acting Internal Brakes
Quick Reversal Of Direction Of Rotation
Terminal Box or Lead Wires For Connection
Totally Enclosed Fan Cooled Aluminium Body

Motor Specifications:

Model	Supply	Frequency Hz	Stall Torque Nm	Rated Torque Nm	Rated Speed RPM	Rated Current Amp	Capacitor F
5RX4180	Single Phase 230V	50	1.45	1.22	1350	1.10	7
5RY4180	Three Phase 230V	50	1.50	1.34	1250	0.90	-
5RY4180	Three Phase 415V	50	1.94	1.22	1350	0.48	-
5RX2180	Single Phase 230V	50	0.75	0.61	2700	1.10	4
5IY2180	Three Phase 230V	50	0.66	0.61	2600	0.90	-
5RY2180	Three Phase 415V	50	1.10	0.61	2700	0.51	-

Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom

Gear Motor Torque Table:

The maximum permissible torque is 20 Nm
No Load speed of Motor at 50Hz is approx. 1440RPM

50Hz

Unit : N.m

RPM	480	400	288	240	192	160	115	96	80	57	48	40	29	24	19	16	14	12	9.6	8
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	3.4	4.1	5.7	6.8	8.5	10.2	12.8	15.3	18.4	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0

The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.

Motor Dimensions:

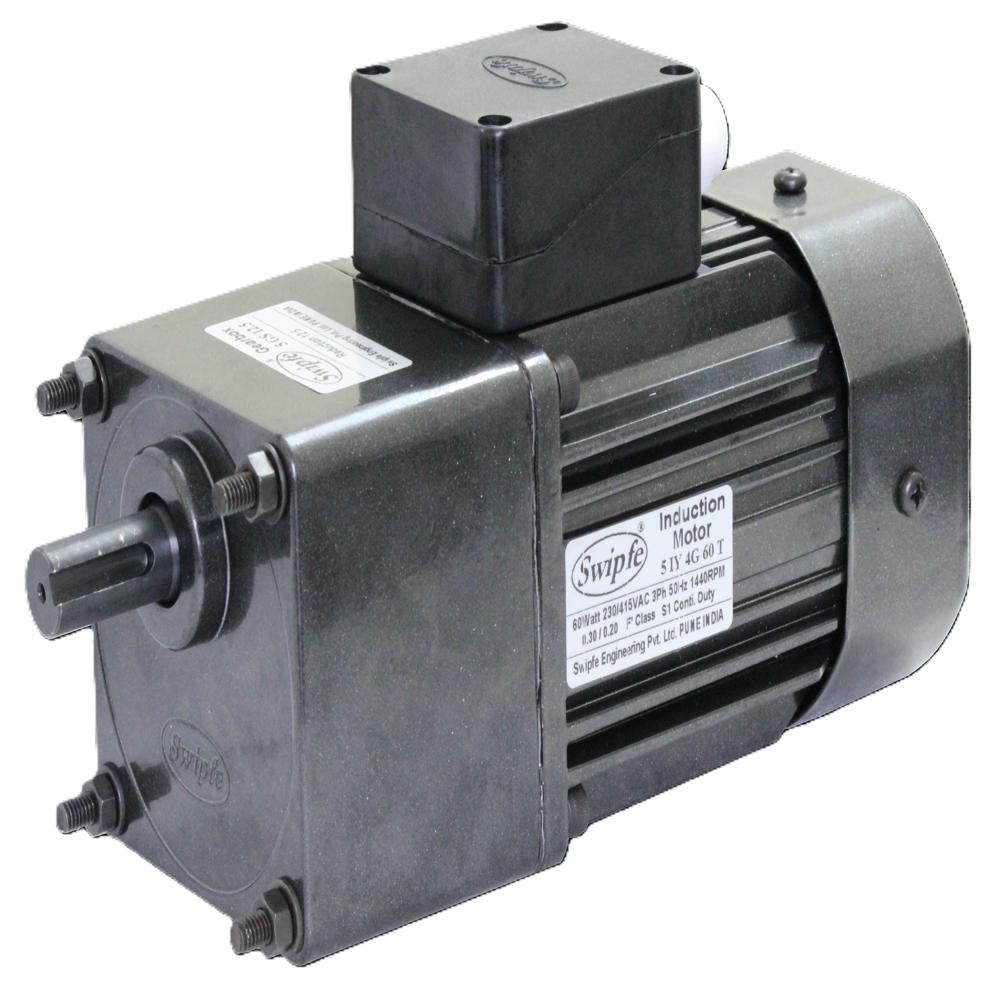

Motor, Gearbox with Terminal Box

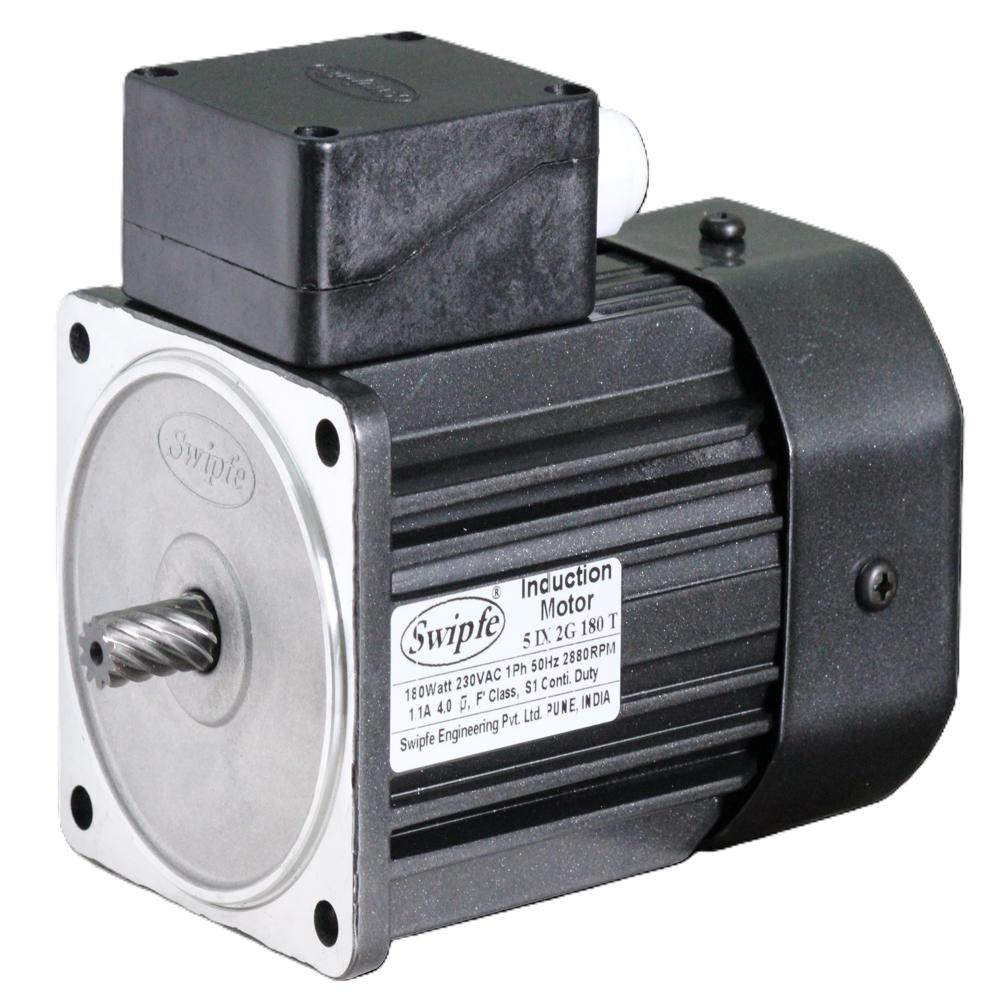

Motor Round Shaft with Terminal Box

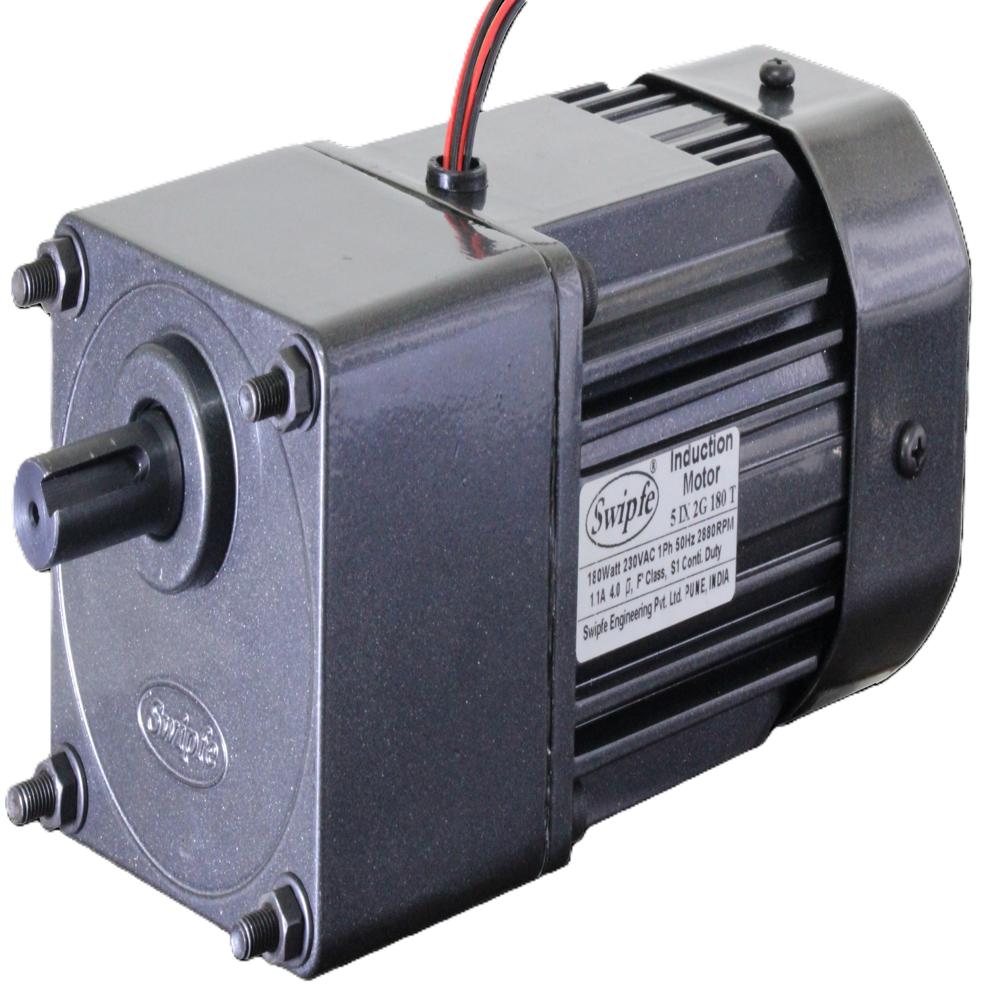

Motor, Gearbox with Lead Wires

Key & Keyway

Max. Weight:

Motor - 3.3 kg

Gear Box - 1.7 kg

Wiring Diagram:

Wiring Diagram for Single Phase Motor

Short Black wires and connect as shown to rotate the motor in clockwise direction.
To change the direction, flip CW to CCW.

Red wires are for running winding & Black wires are for starting winding. To change the direction, interchange Black wires or Red wires.

Wiring Diagram for Three Phase Motor

Star Connection

To change the direction, interchange any two wires between U, V & W. For 415 Volt 3 Phase supply, wires are connected as shown. Short White, Black, & Blue wires and then insulate it properly.

Delta Connection

To change the direction, interchange any two wires between U, V & W.
For 230 Volt 3 Phase supply, wires are connected as shown.

Change the direction of motor only after it stops rotating. If the attempt is made during rotation, motor may not change the direction or change the direction after some time.
