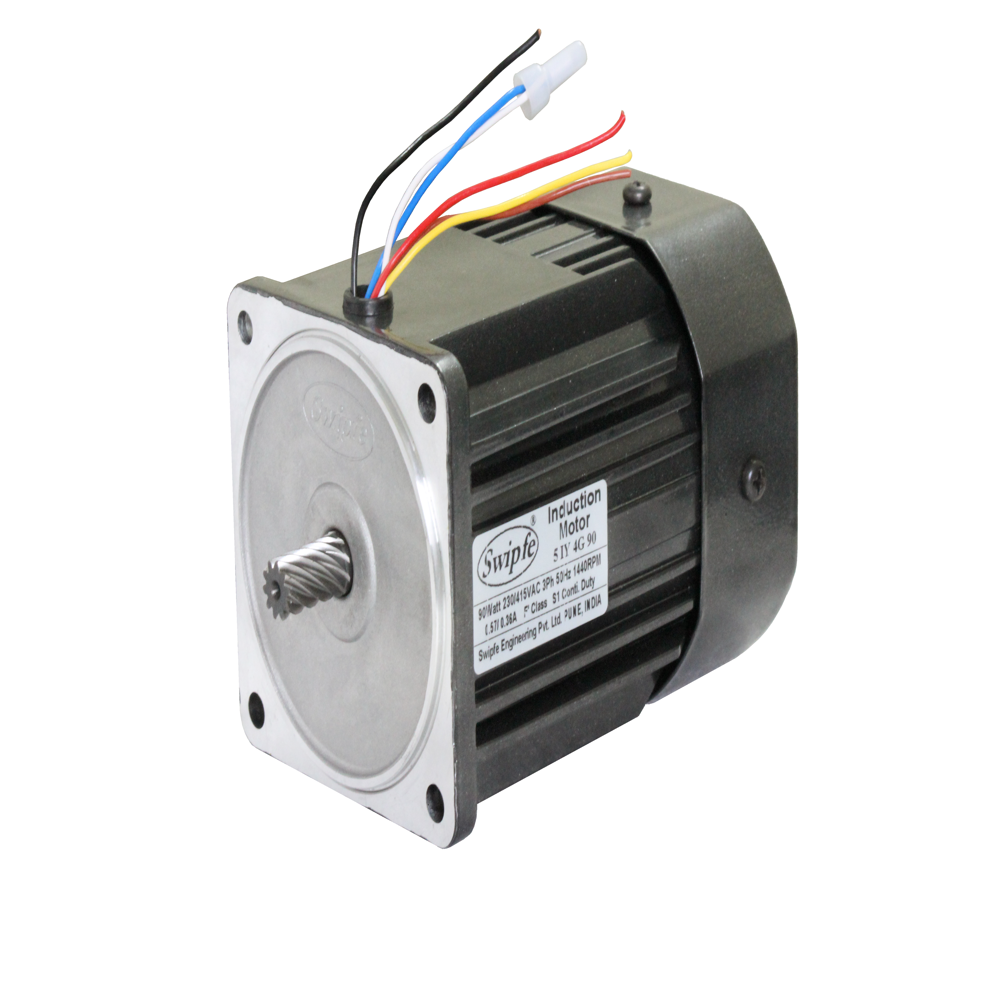

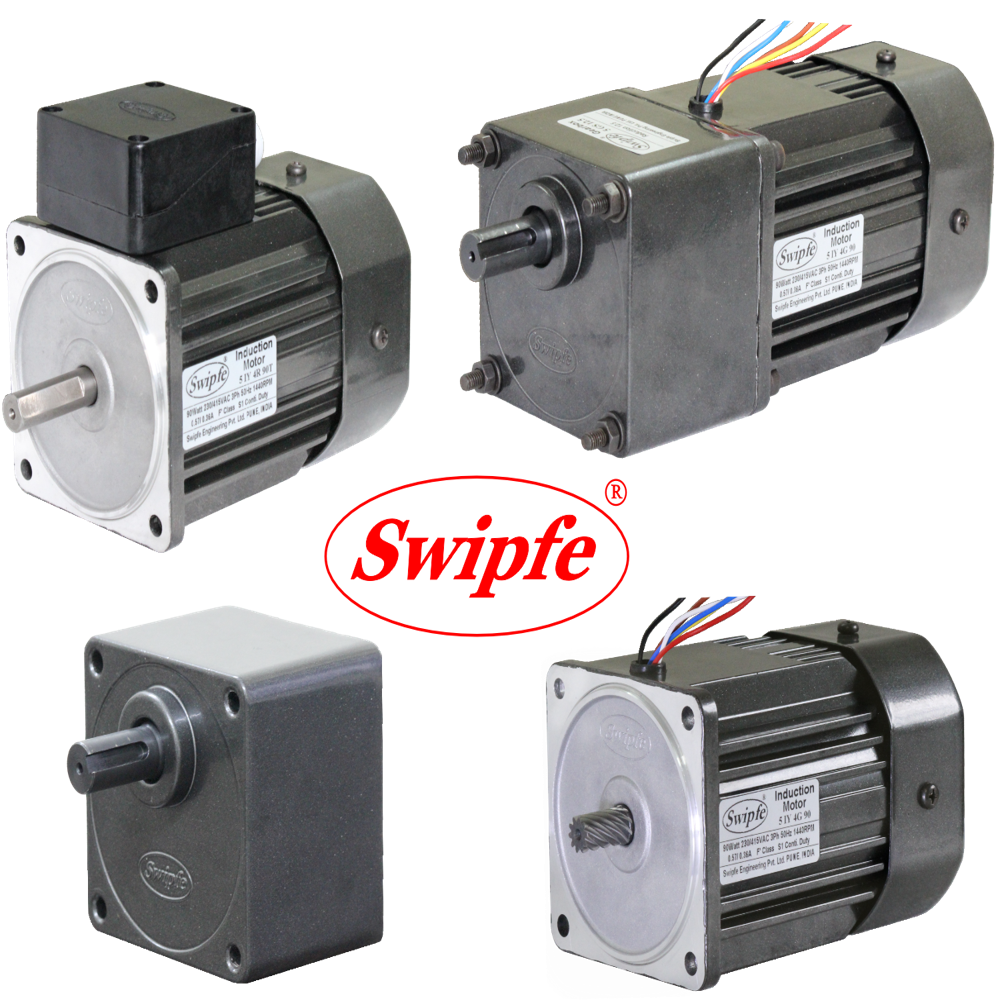

Send InquiryReversible Motor 90 Watt
Price 3660.0 INR/ Piece
MOQ : 1 Piece
Reversible Motor 90 Watt Specification
- Bearing Type
- Ball Bearing
- Current Type
- AC
- Power Rating
- Continuous
- Poles Number
- 4, 2
- Voltage
- 230 Volt (v)
- Torque
- 20 N-m
- Starting Type
- Capacitor
- Cooling Method
- Fan Cooled
- Rated Frequency
- 50 Hertz (HZ)
- Rated Voltage
- 415 Volt (V)
- Features
- 90 Watt Square Flange 90mm x 90mm Short Duty, 30 Minute Rating Continuously Acting Internal Brakes Quick Reversal Of Direction Of Rotation Terminal Box or Lead Wires For Connection Totally Enclosed Fan Cooled Aluminium Body
- Horse Power
- 1/8
- Ambient Temperature
- -30 to 40 Celsius (oC)
- Product Type
- Reversible Motor
- Output Power
- 90 Watt (w)
- Frequency (MHz)
- 50 Hertz (HZ)
- Protect Feature
- Totally Enclosed
- Speed
- 8 - 3000 RPM
- Power
- 90 Watt (w)
- Color
- Black
- Usage & Applications
- Industrial
- Dimension (L*W*H)
- 238*90*125 Millimeter (mm)
- Operating Temperature
- 40 Celsius (oC)
- Weight
- 2.6 Kilograms (kg)
- Phase
- 1
- Warranty
- 1 Year
- Rated Current
- 0.4 Ampere (amp)
- Material
- Aluminium
- Conductor
- Copper
- Frequency
- 50 Hertz (HZ)
- Shaft Diameter
- 12 Millimeter (mm)
- Mounting Type
- Face
- IP Rating
- ip23, ip44, ip55 , Ip21
Reversible Motor 90 Watt Trade Information
- Minimum Order Quantity
- 1 Piece
- FOB Port
- Pune
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 500 Pieces Per Week
- Delivery Time
- 2 Days
- Sample Available
- Yes
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Main Domestic Market
- All India
About Reversible Motor 90 Watt
90 Watt
Square Flange
90mm x 90mm
Short Duty, 30 Minute Rating
Continuously Acting Internal Brakes
Quick Reversal Of Direction Of Rotation
Terminal Box or Lead Wires For Connection
Totally Enclosed Fan Cooled Aluminium Body
Motor Specifications:
| Model | Supply | Frequency Hz |
Stall Torque Nm |
Rated Torque Nm |
Rated Speed RPM |
Rated Current Amp |
Capacitor F |
|---|---|---|---|---|---|---|---|
| 5RX490 | Single Phase 230V | 50 | 0.86 | 0.67 | 1300 | 0.54 | 4 |
| 5RY490 | Three Phase 230V | 50 | 0.86 | 0.73 | 1250 | 0.44 | - |
| 5RY490 | Three Phase 415V | 50 | 1.10 | 0.61 | 1350 | 0.25 | - |
| 5RX290 | Single Phase 230V | 50 | 0.45 | 0.34 | 2700 | 0.46 | 2.5 |
| 5RY290 | Three Phase 230V | 50 | 0.39 | 0.33 | 2600 | 0.47 | - |
| 5RY290 | Three Phase 415V | 50 | 0.56 | 0.34 | 2700 | 0.26 | - |
Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom
Gear Motor Torque Table:
The maximum permissible torque is 20 Nm
No Load speed of Motor at 50Hz is approx. 1440RPM
50Hz
Unit : N.m
| RPM | 480 | 400 | 288 | 240 | 192 | 160 | 115 | 96 | 80 | 57 | 48 | 40 | 29 | 24 | 19 | 16 | 14 | 12 | 9.6 | 8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
| Output Torque | 1.7 | 2.0 | 2.8 | 3.3 | 4.2 | 5.0 | 6.3 | 7.5 | 9.1 | 11.2 | 13.4 | 16.1 | 20.0 | 20.0 | 20.0 | 20.0 | 19.5 | 20.0 | 20.0 | 20.0 |
The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.
Motor Dimensions:

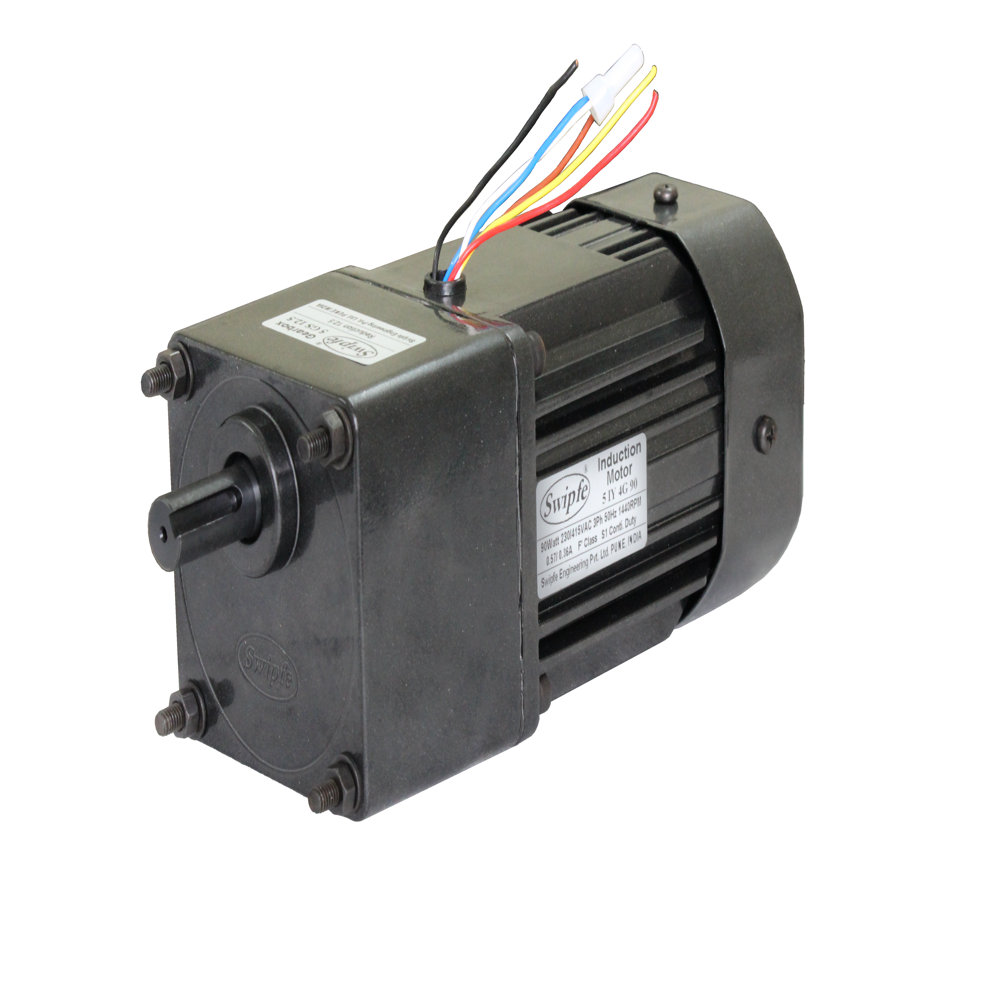

Motor, Gearbox with Terminal Box

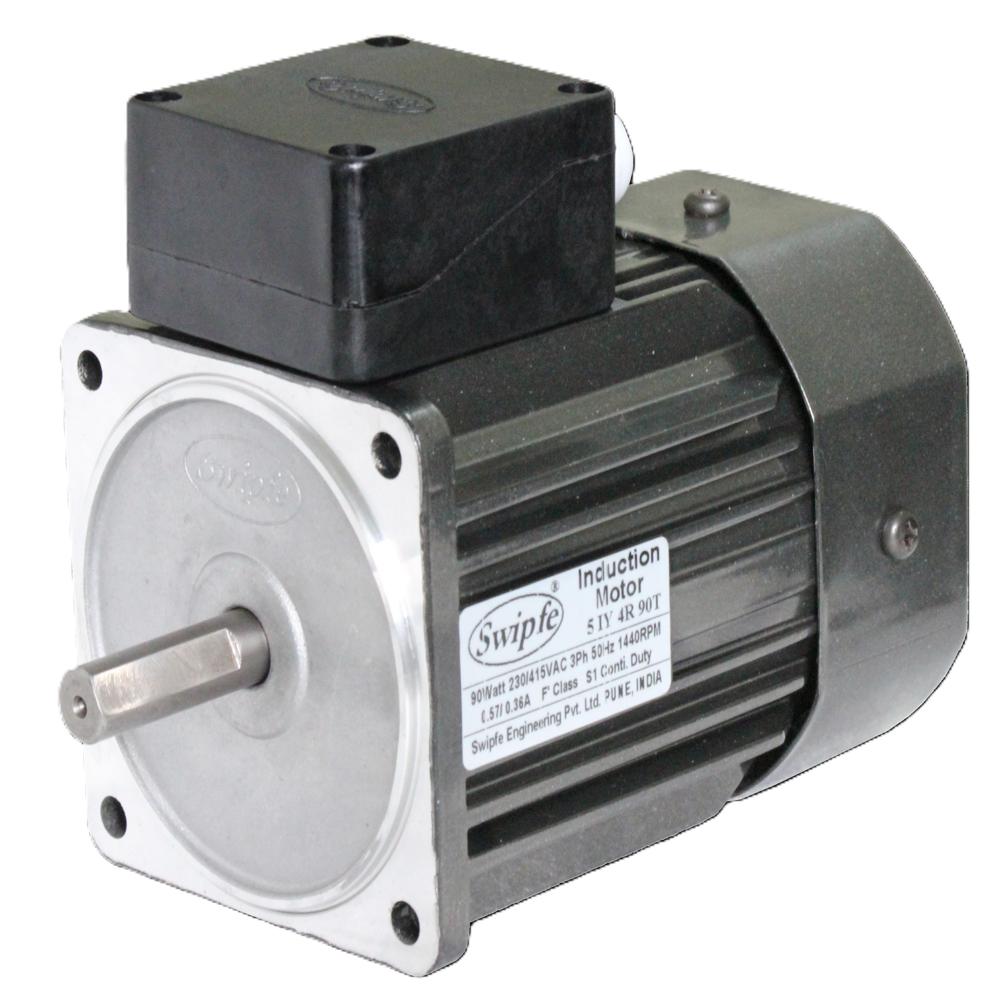

Motor Round Shaft with Terminal Box
Motor, Gearbox with Lead Wires
Key & Keyway
Max. Weight:
Motor - 2.7 kg
Gear Box - 1.7 kg
Wiring Diagram:
Wiring Diagram for Single Phase Motor
Short Black wires and connect as shown to rotate the motor in clockwise direction.
To change the direction, flip CW to CCW.
Red wires are for running winding & Black wires are for starting winding. To change the direction, interchange Black wires or Red wires.
Wiring Diagram for Three Phase Motor
Star Connection
To change the direction, interchange any two wires between U, V & W. For 415 Volt 3 Phase supply, wires are connected as shown. Short White, Black, & Blue wires and then insulate it properly.
Delta Connection
To change the direction, interchange any two wires between U, V & W.
For 230 Volt 3 Phase supply, wires are connected as shown.
Change the direction of motor only after it stops rotating. If the attempt is made during rotation, motor may not change the direction or change the direction after some time.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Reversible Motor Category

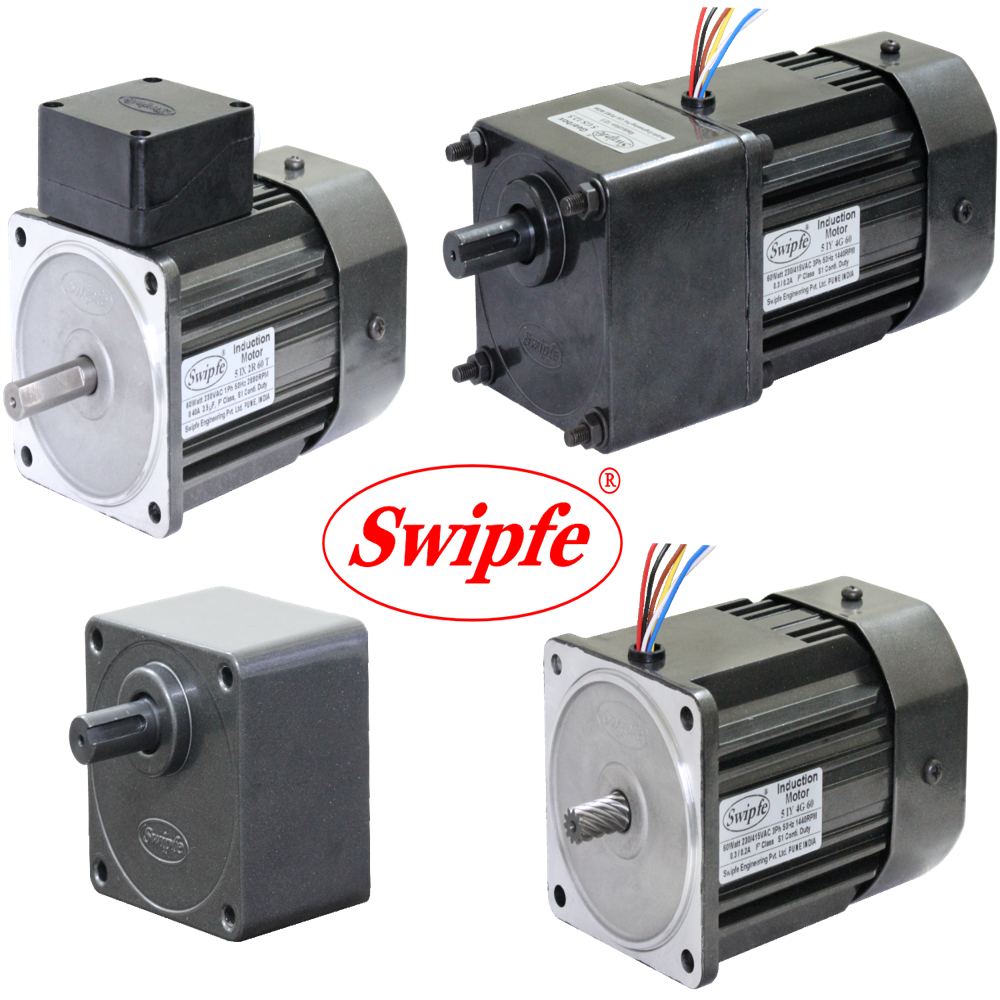

60 Watt Reversible Geared Motor
