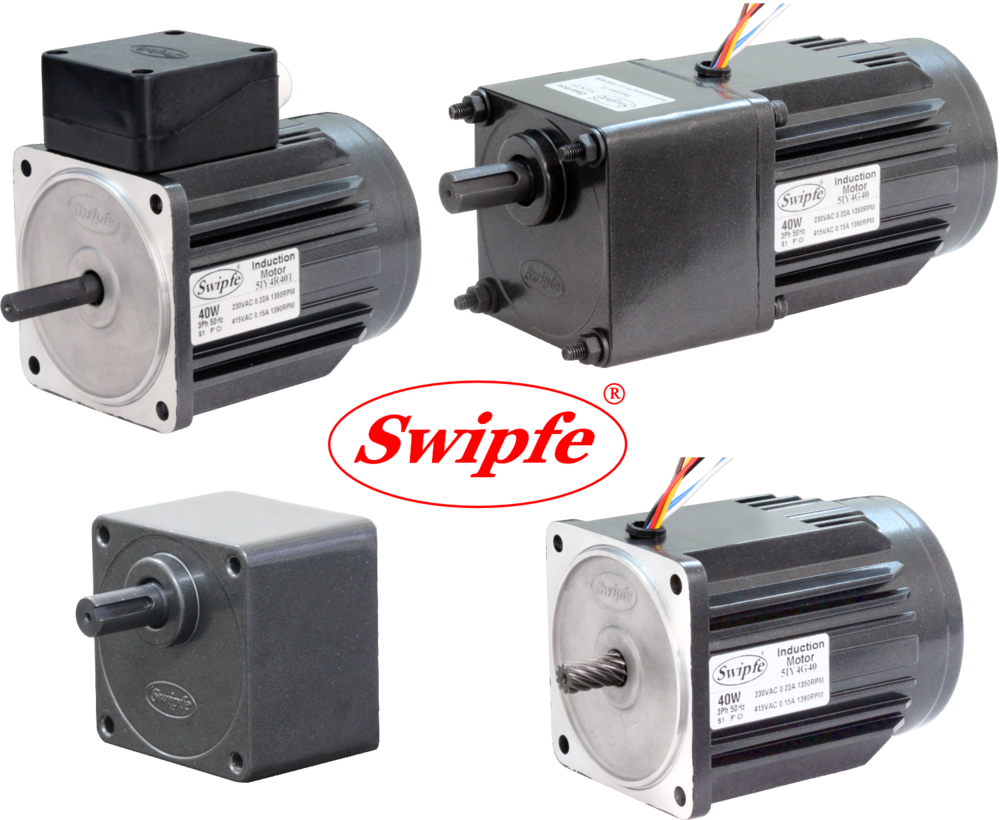

Torque Motor 20 Watt

Price 2490 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Torque Motor 20 Watt Specification

Torque
20 N-m

Voltage
230 Volt (v)

Bearing Type
Ball Bearing

Rated Frequency
50 Hertz (HZ)

Rated Voltage
230 Volt (V)

Horse Power
0.03

Poles Number
4

Product Type
FHP Motor,PMDC Motor,Torque Motor,Reversible Motor,Brake Motor,Centrifugal Blower

Output Power
20 Watt (w)

Frequency (MHz)
50 Hertz (HZ)

Protect Feature
Totally Enclosed

Efficacy
Other

Speed
1500 RPM

Starting Type
Electric Start

Power
20 Watt (w)

Dimension (L*W*H)
120*90*90 Millimeter (mm)

Weight
2.4 Kilograms (kg)

Warranty
1 Year

Phase
Single

Material
Aluminium

Frequency
50 Hertz (HZ)

Shaft Diameter
15 Millimeter (mm)

IP Rating
ip55

Torque Motor 20 Watt Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Pune

Supply Ability
500 Units Per Month

Delivery Time
30 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Asia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Torque Motor 20 Watt

20 Watt

Square Flange

90mm x 90mm

Continuous Duty
Clockwise or Counter Clockwise Rotation
Terminal Box or Lead Wires For Connection
Totally Enclosed Fan Cooled Aluminium Body

20watt-Torque-Motor

Motor Specifications:

Model	Supply	Frequency Hz	Stall Torque Nm	Rated Torque Nm	Rated Speed RPM	Rated Current Amp	Capacitor F
5TX420	Single Phase 230V	50	0.34	0.28	1350	0.27	2
5TY420	Three Phase 230V	50	0.56	0.28	1350	0.25	-
5TY440	Three Phase 415V	50	0.69	0.28	1400	17	-
5TX220	Single Phase 230V	50	0.20	0.14	2800	0.26	1
5TY220	Three Phase 230V	50	0.22	0.14	2800	0.23	-
5TY220	Three Phase 415V	50	0.33	0.14	2850	0.16	-

Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom

Gear Motor Torque Table:

The maximum permissible torque is 20 Nm
No Load speed of Motor at 50Hz is approx. 1440RPM

50Hz

Unit : N.m

RPM	480	400	288	240	192	160	115	96	80	57	48	40	29	24	19	16	14	12	9.6	8
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	0.72	0.87	1.2	1.4	1.8	2.2	2.7	3.2	3.9	4.9	5.8	7.0	8.8	10.6	13.3	15.9	17.7	20.0	20.0	20.0

The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.

Motor Dimensions:

Motor, Gearbox with Terminal Box

20watt-torque-Motor-Gearbox-With-Terminal-Box

Motor Round Shaft with Terminal Box

20watt-torque-motor-round-shaft-with-terminal-box

Motor, Gearbox with Lead Wires

20watt-torque-motor-gearbox-with-lead-wires-side-view

Key & Keyway

40watt-inductio-motor-Motor-Gearbox

Max. Weight:

Motor - 2.2 kg

Gear Box - 1.5 kg

Wiring Diagram:

Wiring Diagram for Single Phase Motor

20watt-torque-motor-Wiring-Diagram-For-Single-Phase-Motor

Short Black wires and connect as shown to rotate the motor in clockwise direction.
To change the direction, flip CW to CCW.

20watt-torque-motor-Wiring-Diagram-For-Single-Phase-Motor

Red wires are for running winding & Black wires are for starting winding. To change the direction, interchange Black wires or Red wires.

Wiring Diagram for Three Phase Motor

Star Connection

To change the direction, interchange any two wires between U, V & W. For 415 Volt 3 Phase supply, wires are connected as shown. Short White, Black, & Blue wires and then insulate it properly.

Delta Connection

To change the direction, interchange any two wires between U, V & W.
For 230 Volt 3 Phase supply, wires are connected as shown.

Change the direction of motor only after it stops rotating. If the attempt is made during rotation, motor may not change the direction or change the direction after some time.
