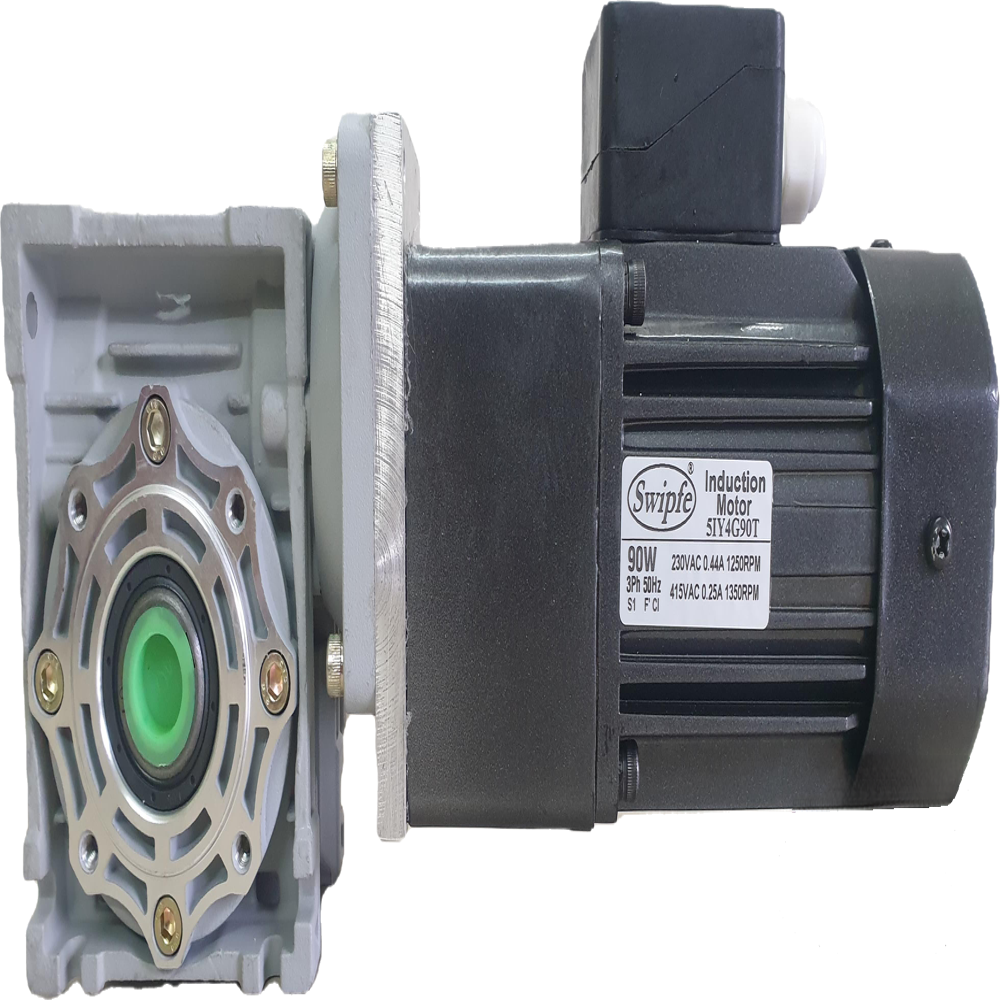

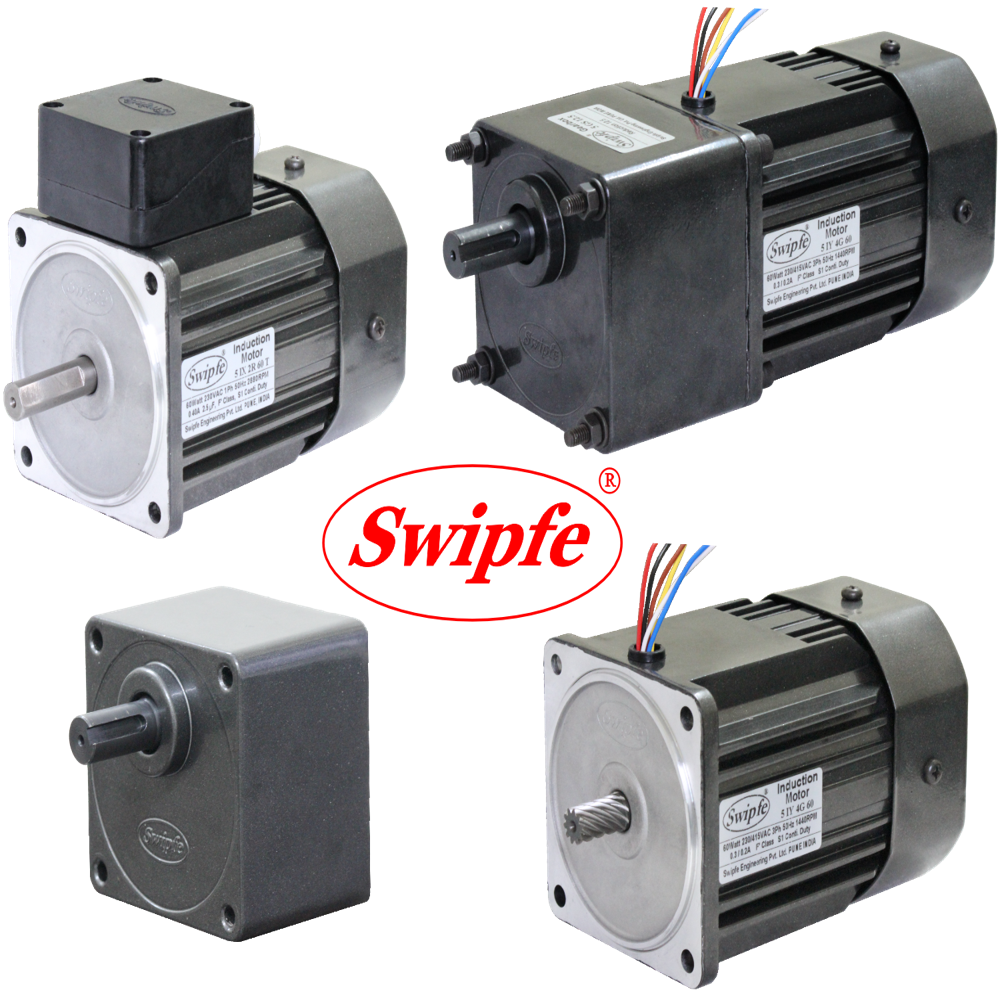

3 Phase Right angle 90W Induction Motor

Name: 3 Phase Right angle 90W Induction Motor
Brand: Swipfe Engineering Pvt. Ltd.
Price: 6030.0 INR
Availability: InStock

Price 6030.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

3 Phase Right angle 90W Induction Motor Specification

Features
Corrosion-resistant body

Product Type
Other

Frequency (MHz)
50-60 Hertz (HZ)

Protect Feature
Totally Enclosed

Usage & Applications
Industrial

Phase
Single / Three phase

Conductor
Copper

Material
Mild steel

3 Phase Right angle 90W Induction Motor Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Per Month

Delivery Time
2 Days

Main Domestic Market
All India

About 3 Phase Right angle 90W Induction Motor

Motor Square Flange
90mm x 90mm

Continuous Duty
Clockwise or Counter Clockwise Rotation
Terminal Box or Lead Wires For Connection
Totally Enclosed Fan Cooled Aluminium Body

Motor Specifications:

Model	Supply	Frequency Hz	Stall Torque Nm	Rated Torque Nm	Rated Speed RPM	Rated Current Amp	Capacitor F
5IX4F180	Single Phase 230V	50	1.45	1.22	1350	1.10	8
5IY4F180	Three Phase 230V	50	1.50	1.34	1250	0.90	-
5IY4F180	Three Phase 415V	50	1.94	1.22	1350	0.48	-
5IX4F90	Single Phase 230V	50	0.86	0.62	1350	0.51	4
5IY4F90	Three Phase 230V	50	0.86	0.72	1250	0.44	-
5IY4F90	Three Phase 415V	50	1.10	0.61	1350	0.25	-
5IX4F60	Three Phase 230V	50	0.51	0.45	1350	0.42	3.15
5IY4F60	Three Phase 415V	50	0.56	0.45	1300	0.29	-
5IY4F60	Single Phase 230V	50	0.69	0.45	1350	0.18	-

Gearmotor Torque Table:

The maximum permissible torque is 24 Nm
The maximum permissible torque is 24 Nm No Load speed of Motor at 50Hz is approx. 1440RPM

50Hz

Unit : Nm

RPM	288	192	144	96	72	57	48	36	29	24	18
Gear Ratio	5	7.5	10	15	20	25	30	40	50	60	80
Output Torque	5.0	7.8	10.0	14.0	18.0	21.0	24.0	14.0	17.0	19.0	14.0
Motor Power	180	180	180	180	180	180	180	90	90	90	60

The Gear Boxes are sold Seperately.
The speed of geared motor is calculated by dividing motors no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.

Dimensions:

Worm Gearbox

Motor, Gearbox with Terminal Box

Motor And Terminal Box With GB30W Side View

Motor And Terminal Box With GB30W Front View

Motor, Gearbox with Lead Wires

Motor And Lead Wires With GB30W Side View

Motor And Lead Wires With GB30W Front View

Hollow Shaft

Max. Weight:

Motor - 2.5 - 3.3 kg

Gear Box - 1.1 kg

Wiring Diagram:

Wiring Diagram for Single Phase Motor

Short Black wires and connect as shown to rotate the motor in clockwise direction. To change the direction, flip CW to CCW.

Red wires are for running winding & Black wires are for starting winding. To change the direction, interchange Black wires or Red wires..

Wiring Diagram for Three Phase Motor

To change the direction, interchange any two wires between U, V & W. For 415 Volt 3 Phase supply, wires are connected as shown. Short White, Black, & Blue wires and then insulate it properly.

To change the direction, interchange any two wires between U, V & W. For 230 Volt 3 Phase supply, wires are connected as shown.

Change the direction of motor only after it stops rotating. If the attempt is made during rotation, motor may not change the direction or change the direction after some time.
