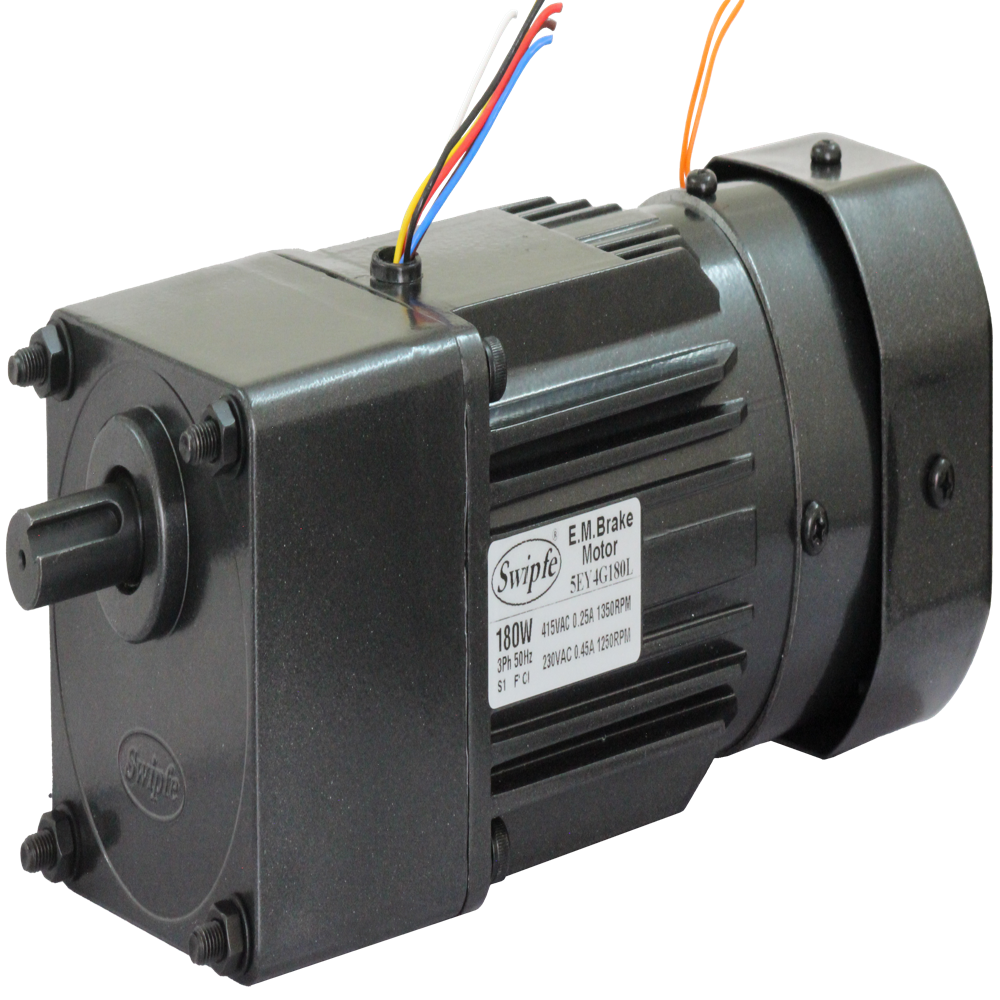

90 watt Induction Motor Three Phase

Price 3060.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

90 watt Induction Motor Three Phase Specification

Features
Continuous Duty Clockwise or Counter Clockwise Rotation Terminal Box or Lead Wires For Connection Totally Enclosed Fan Cooled Aluminium Body

Rated Frequency
50 Hertz (HZ)

Poles Number
4, 2

Rated Voltage
415 Volt (V)

Torque
20 N-m

Cooling Method
Fan Cooled

Voltage
220-440 Volt (v)

Current Type
AC

Bearing Type
Ball Bearing

Starting Type
Electric

Horse Power
1/8

Power Rating
Continuous

Ambient Temperature
-30 to 40 Celsius (oC)

Product Type
Other

Output Power
90 Watt (w)

Frequency (MHz)
50-60 Hertz (HZ)

Protect Feature
Totally Enclosed

Efficacy
Other

Speed
2 - 3000 RPM

Power
1/8 Horsepower (HP)

Usage & Applications
Industrial

Color
Black

Operating Temperature
-30 to 40 Celsius (oC)

Dimension (L*W*H)
238*90*125 Millimeter (mm)

Weight
4.5 Kilograms (kg)

Warranty
1 Year

Phase
Single / Three phase

Rated Current
0.47 Ampere (amp)

Material
Cast iron

Frequency
50 Hertz (HZ)

Conductor
Copper

Shaft Diameter
15 Millimeter (mm)

Mounting Type
Flange

IP Rating
ip44

90 watt Induction Motor Three Phase Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Pune

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
10 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Asia, South America, Eastern Europe, Middle East, Africa

Main Domestic Market
All India

About 90 watt Induction Motor Three Phase

90 Watt

Square Flange

90mm x 90mm

Continuous Duty
Clockwise or Counter Clockwise Rotation
Terminal Box or Lead Wires For Connection
Totally Enclosed Fan Cooled Aluminium Body

Motor Specifications:

Model	Supply	Frequency Hz	Stall Torque Nm	Rated Torque Nm	Rated Speed RPM	Rated Current Amp	Capacitor F
5IX490	Single Phase 230V	50	0.86	0.67	1300	0.54	4
51Y490	Three Phase 230V	50	0.86	0.73	1250	0.44	-
5IY490	Three Phase 415V	50	1.10	0.61	1350	0.25	-
5IX290	Single Phase 230V	50	0.45	0.34	2700	0.46	2.5
5IY290	Three Phase 230V	50	0.39	0.33	2600	0.47	-
5IY290	Three Phase 415V	50	0.56	0.34	2700	0.26	-

Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom

Gear Motor Torque Table:

The maximum permissible torque is 20 Nm
No Load speed of Motor at 50Hz is approx. 1440RPM

50Hz

Unit : N.m

RPM	480	400	288	240	192	160	115	96	80	57	48	40	29	24	19	16	14	12	9.6	8
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	1.7	2.0	2.8	3.3	4.2	5.0	6.3	7.5	9.1	11.2	13.4	16.1	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0

The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.

Motor Dimensions:

Motor, Gearbox with Terminal Box

Motor Round Shaft with Terminal Box

Motor, Gearbox with Lead Wires

Key & Keyway

Max. Weight:

Motor - 2.7 kg

Gear Box - 1.7 kg

Wiring Diagram:

Wiring Diagram for Single Phase Motor

Short Black wires and connect as shown to rotate the motor in clockwise direction.
To change the direction, flip CW to CCW.

Red wires are for running winding & Black wires are for starting winding. To change the direction, interchange Black wires or Red wires.

Wiring Diagram for Three Phase Motor

Star Connection

To change the direction, interchange any two wires between U, V & W. For 415 Volt 3 Phase supply, wires are connected as shown. Short White, Black, & Blue wires and then insulate it properly.

Delta Connection

To change the direction, interchange any two wires between U, V & W.
For 230 Volt 3 Phase supply, wires are connected as shown.

Change the direction of motor only after it stops rotating. If the attempt is made during rotation, motor may not change the direction or change the direction after some time.
