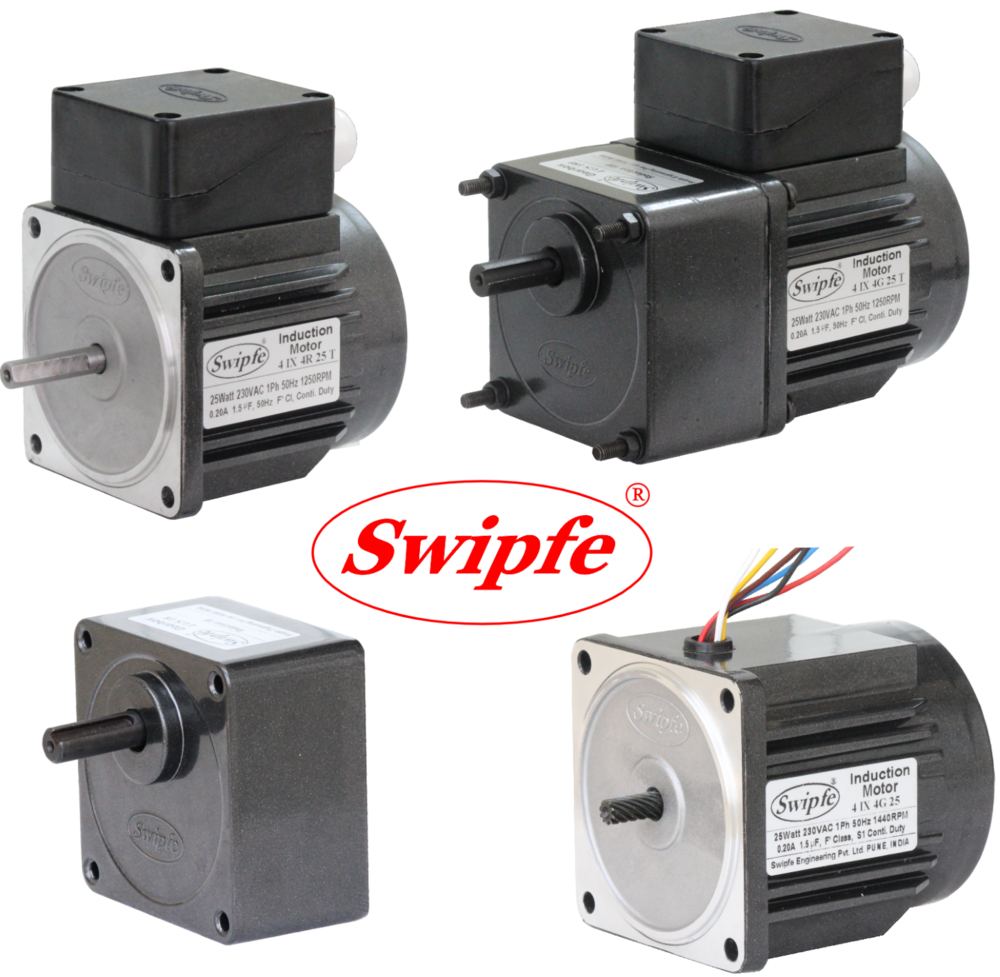

FHP Gear Motor 25 Watt

Price 2160 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

FHP Gear Motor 25 Watt Specification

Poles Number
4, 2

Power Rating
25

Rated Voltage
230 Volt (V)

Current Type
AC

Rated Frequency
50 Hertz (HZ)

Features
Corrosion-resistant body

Horse Power
0.03

Voltage
220-440 Volt (v)

Bearing Type
Ball Bearing

Torque
8 N-m

Product Type
FHP Motor,PMDC Motor,Torque Motor,Reversible Motor,Brake Motor,Centrifugal Blower

Output Power
25 Watt (w)

Frequency (MHz)
50-60 Hertz (HZ)

Protect Feature
Totally Enclosed

Efficacy
Other

Speed
8 - 1500 RPM

Starting Type
Electric Start

Power
25 Watt (w)

Usage & Applications
Industrial

Dimension (L*W*H)
85*80*80 Millimeter (mm)

Weight
1.4 Kilograms (kg)

Warranty
1 Year

Phase
Single / Three phase

Conductor
Copper

Rated Current
0.2 Ampere (amp)

Material
Aluminium

Frequency
50 Hertz (HZ)

Shaft Diameter
10 Millimeter (mm)

Mounting Type
Flange

IP Rating
ip55

FHP Gear Motor 25 Watt Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Pune

Supply Ability
500 Units Per Month

Delivery Time
30 Days

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Asia, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About FHP Gear Motor 25 Watt

25 Watt

Square Flange
80mm x 80mm

Continuous Duty,
Clockwise or Counter Clockwise Rotation
Terminal Box or Lead Wires For Connection
Totally Enclosed Aluminium Body

25watt-induction-motor

Motor Specifications:

Model	Supply	Frequency Hz	Stall Torque Nm	Rated Torque Nm	Rated Speed RPM	Rated Current Amp	Capacitor F
4IX425	Single Phase 230 Volt	50	0.27	0.19	1250	0.20	1.5
4IY425	Three Phase 230 Volt	50	0.39	0.19	1250	0.18	-
4IY425	Three Phase 415 Volt	50	0.51	0.19	1300	0.13	-

Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom

Gear Motor Torque Table:

The maximum permissible torque is 8 N.m
No Load speed of Motor at 50Hz is approx. 1440RPM

50 Hz

Unit : N.m

RPM	480	400	288	240	192	160	115	96	80	57	48	40	29	24	19	16	14	12	9.6	8
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180
Output Torque	0.4	0.5	0.7	0.9	1.1	1.3	1.9	2.3	2.7	3.4	4.1	5.0	6.1	7.4	8.0	8.0	8.0	8.0	8.0	8.0

The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.

Motor Dimensions:

Motor, Gearbox with Terminal Box

25watt-induction-motor-motor-Motor-Gearbox-With-Terminal-Box

Motor Round Shaft with Terminal Box

25watt-induction-motor-round-shaft-with-terminal-box

Motor, Gearbox with Lead Wires

25watt-induction-motor-gearbox-with-lead-wires-side-view

Key & Keyway

25watt-induction-motor-Motor-Gearbox

Max. Weight:

Motor - 1.4 kg

Gear Box - 0.75 kg

Wiring Diagram:

Wiring Diagram for Single Phase Motor

25watt-induction-motor-Wiring-Diagram-For-Single-Phase-Motor

Short Black wires and connect as shown to rotate the motor in clockwise direction.
To change the direction, flip CW to CCW.

25watt-induction-motor-Wiring-Diagram-For-Single-Phase-Motor

Red wires are for running winding & Black wires are for starting winding. To change the direction, interchange Black wires or Red wires.

Wiring Diagram for Three Phase Motor

Star Connection

To change the direction, interchange any two wires between U, V & W. For 415 Volt 3 Phase supply, wires are connected as shown. Short White, Black, & Blue wires and then insulate it properly.

Delta Connection

To change the direction, interchange any two wires between U, V & W.
For 230 Volt 3 Phase supply, wires are connected as shown.

Change the direction of motor only after it stops rotating. If the attempt is made during rotation, motor may not change the direction or change the direction after some time.
