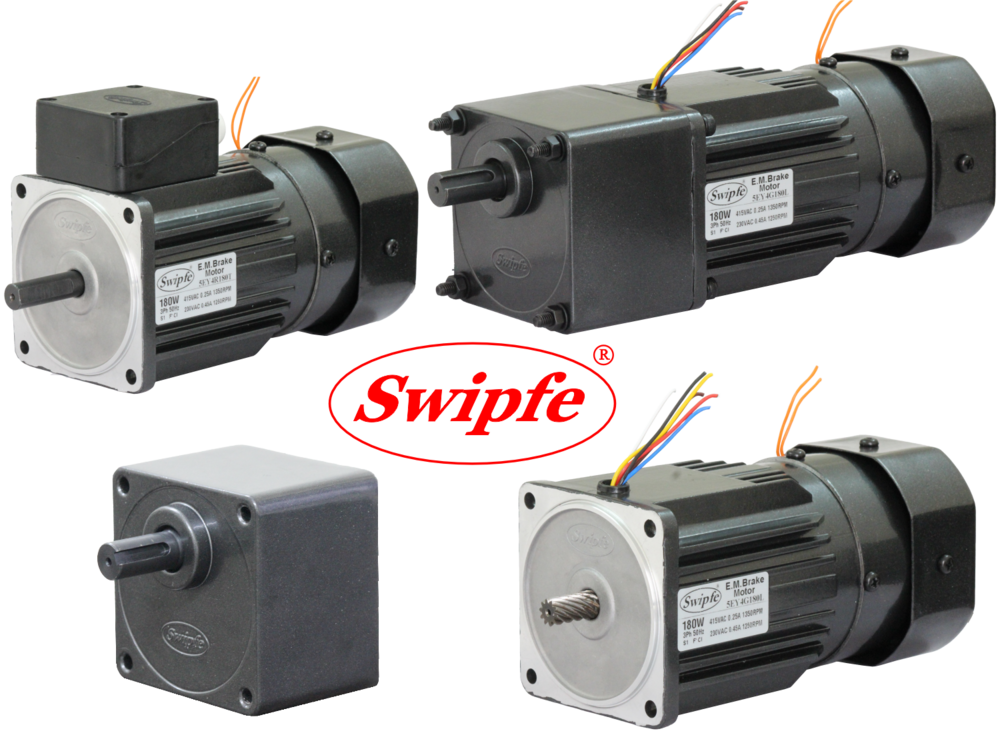

Brake Motor 180 Watt
5850.00 - 9150.00 INR/Unit
Product Details:
- Bearing Type Ball Bearing
- Warranty 1 Year
- Cooling Method Fan Cooled
- Rated Voltage 415 Volt (V)
- Horse Power 0.25
- Voltage 220-440 Volt (v)
- Usage & Applications Industrial
- Click to View more
X
Brake Motor 180 Watt Price And Quantity
- 1 Unit
- 5850.00 - 9150.00 INR/Unit
Brake Motor 180 Watt Product Specifications
- Dark
- Ball Bearing
- 1 Year
- 415 Volt (V)
- Fan Cooled
- Aluminium
- Other
- Industrial
- 50-60 Hertz (HZ)
- 0.25
- 220-440 Volt (v)
- Totally Enclosed
- 4.25 Kilograms (kg)
- 50 Hertz (HZ)
- 0.25 Horsepower (HP)
- 20 N-m
- 8 - 1400 RPM
- 15 Millimeter (mm)
- Durable
- Electric Start
- Brake Motor
- 180 Watt (w)
- Single / Three phase
- Copper
- Flange Mount
- 4, 2
Brake Motor 180 Watt Trade Information
- MUMBAI
- 500 Unit Per Month
- 15 Days
- Yes
- Sample costs shipping and taxes has to be paid by the buyer
- All India
Product Description
180 Watt
Square Flange
90mm x 90mm
Continuous Rating with Frequent Start Stop,
Load Holding & Minimum Overrun.
Electromagnetic Fail Safe Brake (Power Off activated)
Fitted at the Back of Induction Motor.
Rotates in Clockwise or Counter Clockwise Direction.
Terminal Box or Lead Wires for Connection.
Motor Specifications:
| Model | Supply | Frequency Hz |
Stall Torque Nm |
Rated Torque Nm |
Rated Speed RPM |
Rated Current Amp |
Capacitor F |
|---|---|---|---|---|---|---|---|
| 5EX4180 | Single Phase 230V | 50 | 1.45 | 1.22 | 1350 | 1.10 | 7 |
| 5EY4180 | Three Phase 230V | 50 | 1.50 | 1.34 | 1250 | 0.90 | - |
| 5EY4180 | Three Phase 415V | 50 | 1.94 | 1.22 | 1350 | 0.48 | - |
| 5EX2180 | Single Phase 230V | 50 | 0.75 | 0.61 | 2700 | 1.10 | 4 |
| 5EY2180 | Three Phase 230V | 50 | 0.66 | 0.61 | 2600 | 0.90 | - |
| 5EY2180 | Three Phase 415V | 50 | 1.10 | 0.61 | 2700 | 0.51 | - |
Indicates type of Shaft, G - Gear, R - Round, F - Frame, C - Custom
Gear Motor Torque Table:
The maximum permissible torque is 20 Nm
No Load speed of Motor at 50Hz is approx. 1440RPM
50Hz
Unit : N.m
| RPM | 480 | 400 | 288 | 240 | 192 | 160 | 115 | 96 | 80 | 57 | 48 | 40 | 29 | 24 | 19 | 16 | 14 | 12 | 9.6 | 8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
| Output Torque | 3.4 | 4.1 | 5.7 | 6.8 | 8.5 | 10.2 | 12.8 | 15.3 | 18.4 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 | 20.0 |
The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.
Motor Dimensions:
Motor, Gearbox with Terminal Box
Motor Round Shaft with Terminal Box
Motor, Gearbox with Lead Wires
Key & Keyway
Max. Weight:
Motor - 4.5 kg
Gear Box - 1.7 kg
